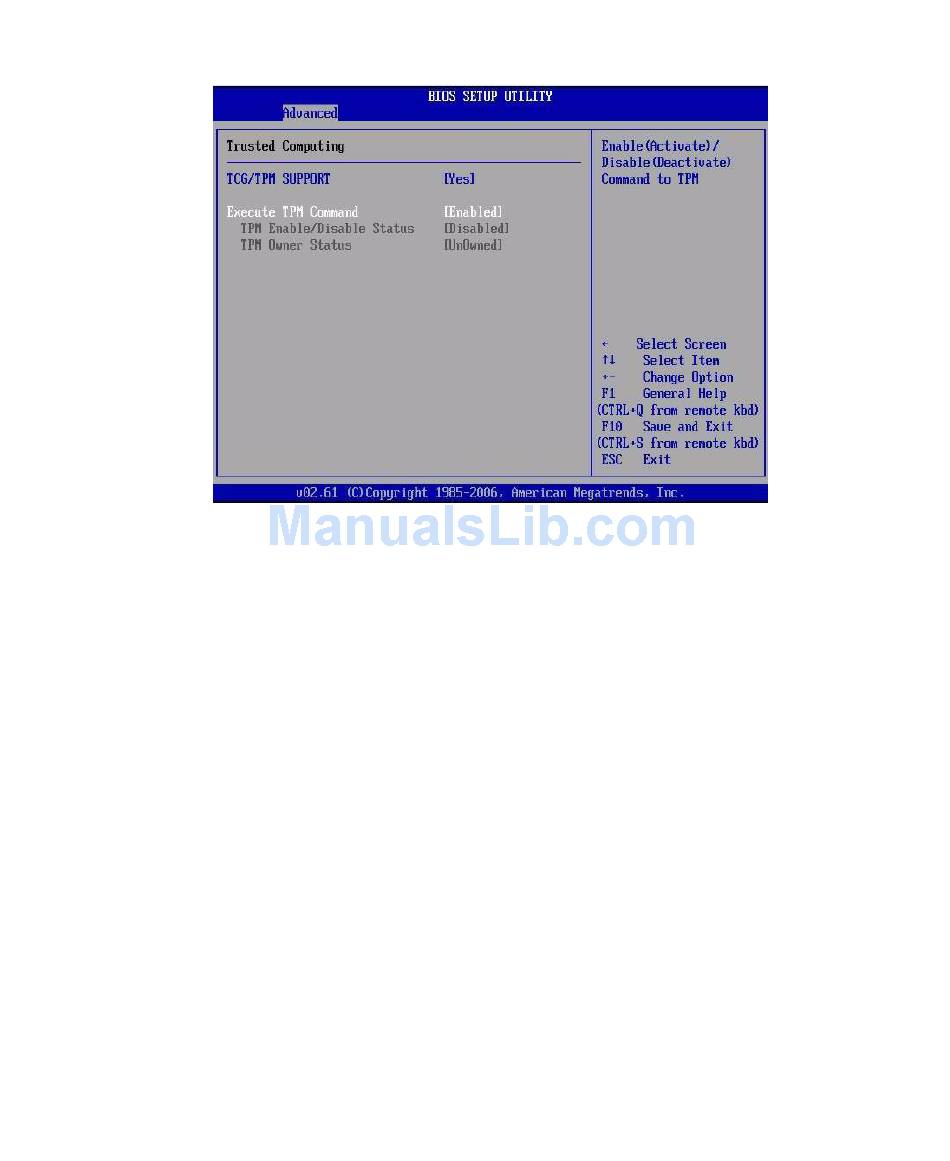

Execute TPM Command – Setting Enabled
FIGURE 2-8
8. Press F10 to save the changes and exit the BIOS Setup Utility.
9. To verify that TPM support is configured, do the following:
a. Reboot the server.
b. To enter the BIOS Setup Utility, press the F2 key while the system is
performing the power-on self-test (POST).
When BIOS is started, the Main BIOS Setup Utility top-level screen appears
( ).
FIGURE 2-4
c. Select Advanced --> Trusted Computing and press Enter.
The updated Trusted Computing screen appears (
Confirm that the TCG/TPM Support setting is set to Yes and the TPM
Enabled/Disable Status is set to Enabled.
FIGURE 2-9
Chapter 2 Preparing to Service the System
).
2-21
