Sun Oracle Sun Fire X4270 M2 Service Manual page 49

3. In the Advanced Settings screen, select Trusted Computing and press Enter.

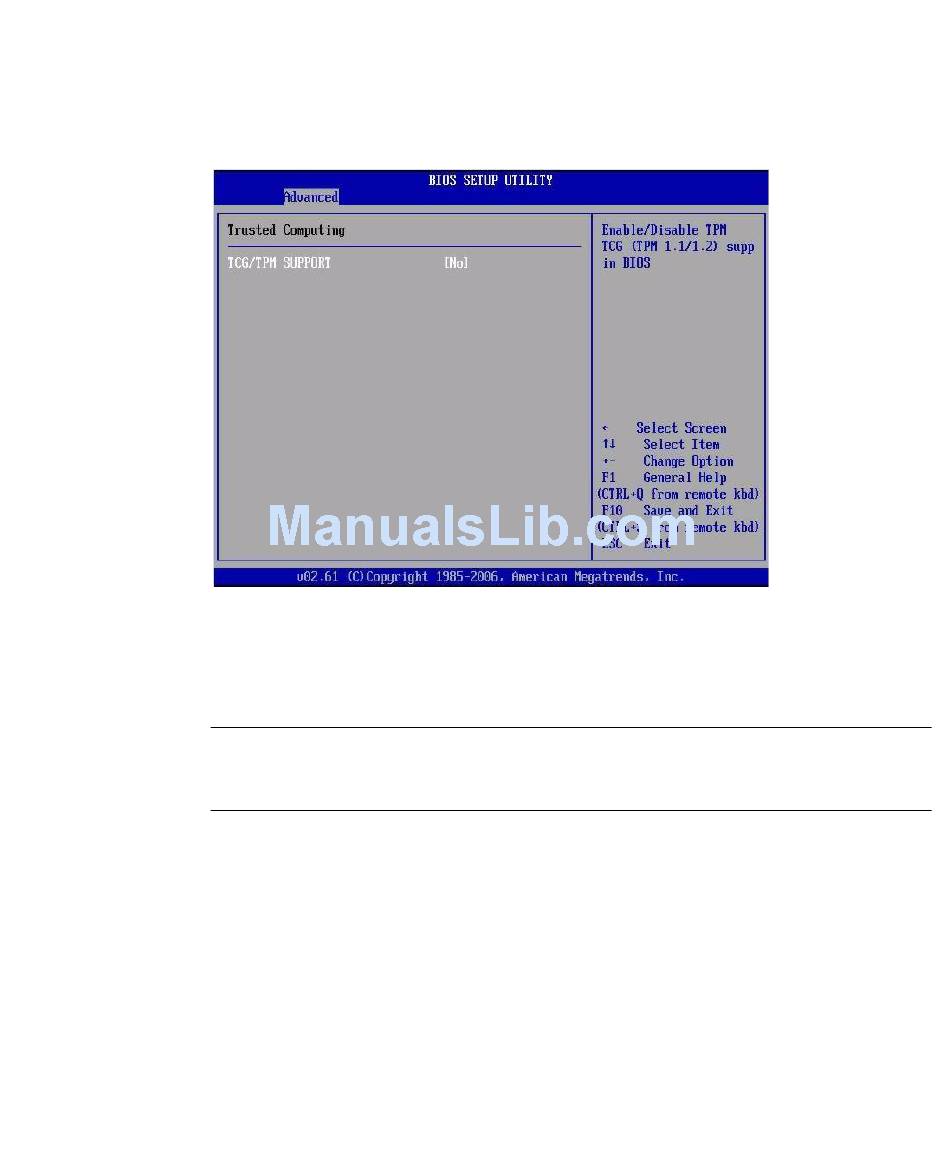

The Trusted Computing screen appears (
Trusted Computing Screen
FIGURE 2-6
4. In the Trusted Computing screen, select the TCG/TPM Support.
A pop-up dialog box appears.
5. In the pop-up dialog box, set the TCG/TPM Support option to Yes and click Ok.
Note – Even if the TCG/TPM Support was already set to Yes in the screen shown
above, continue on and complete the remaining steps of this procedure to ensure that
all TPM configuration requirements are satisfied.
The updated Trusted Computing screen appears and shows that the TCG/TPM
Support setting has changed to Yes (
).
FIGURE 2-6
).
FIGURE 2-7
Chapter 2 Preparing to Service the System 2-19
