Installing DIMMs

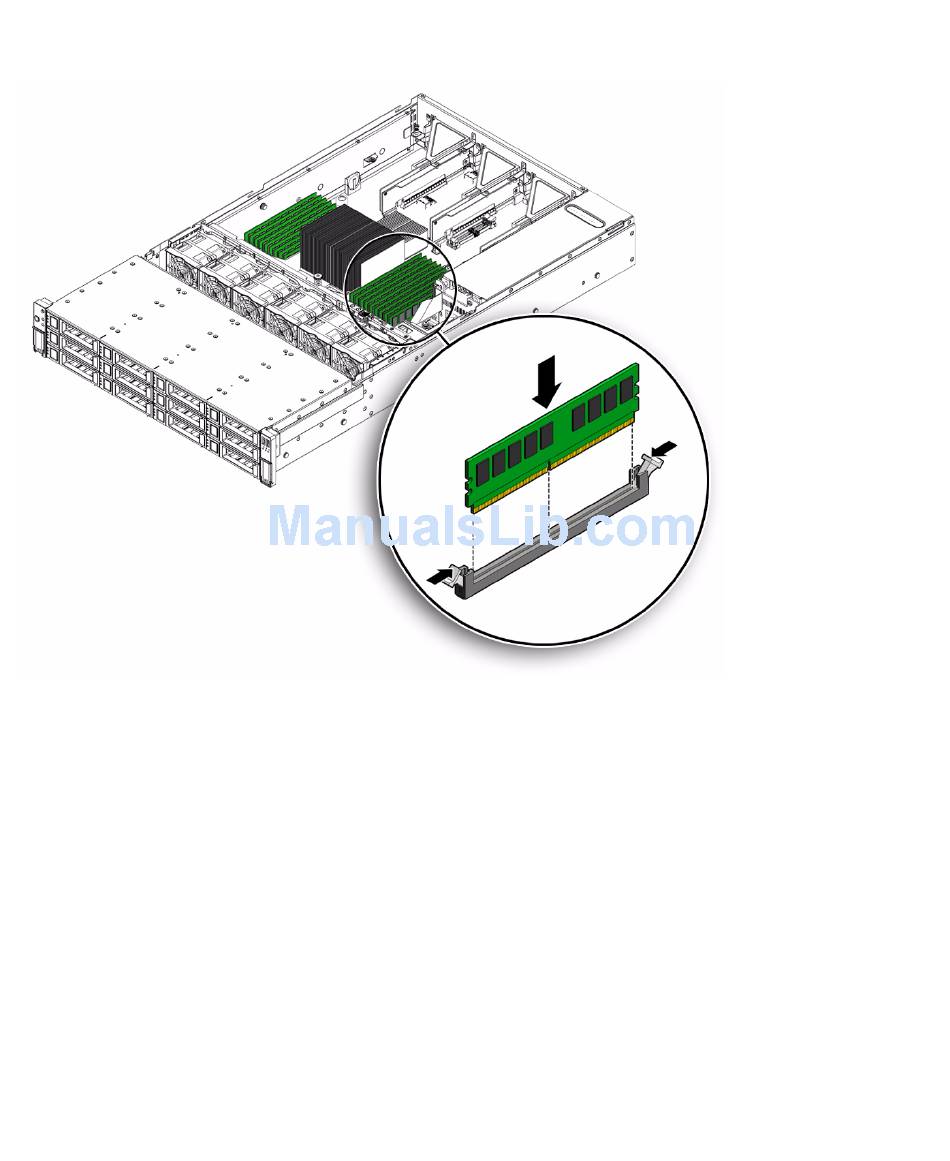

FIGURE 4-6
c. Push the DIMM into the connector until the ejector tabs lock the DIMM in
4. Repeat
5. Return the server to operation.
a. Install the top cover.
b. Return the server to the normal rack position.
4-12 Sun Fire X4270 M2 Server Service Manual • May 2011
place.
If the DIMM does not easily seat into the connector, verify that the notch in the
DIMM is aligned with the key in the connector as shown in
notch is not aligned, damage to the DIMM might occur.
Step 3 until all replacement DIMMs are installed.
See Section 6.2, "Installing the Server Top Cover" on page
See Section 6.4, "Returning the Server to the Normal Rack Position" on
page 6-5.
. If the
FIGURE 4-6
6-2.
