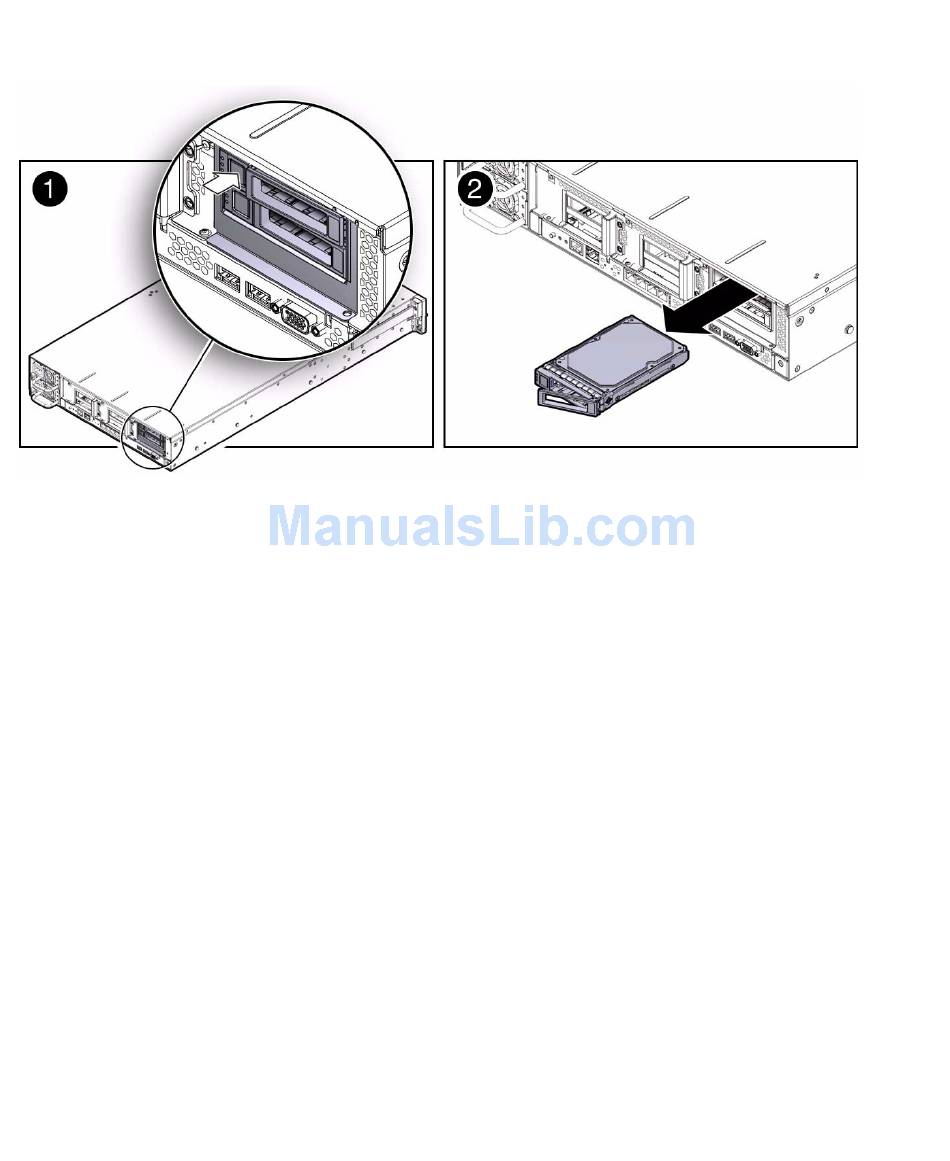

Removing a Rear-Mounted Boot Disk Drive
FIGURE 3-7
3.2.6
Install Boot Drive
1. If necessary, remove the blank drive filler panel.
The system may have blank filler panels covering unoccupied drive slots.
2. Determine the drive slot location for the replacement drive.
If you removed an existing drive from a slot in the system, you must install the
replacement drive in the same slot as the drive that was removed. Drives are
physically addressed according to the slot in which they are installed. See
FIGURE 3-2
3. Slide the drive into the drive slot until it is fully seated (
3-10
Sun Fire X4270 M2 Server Service Manual • May 2011
for drive locations.
[1]).
FIGURE 3-8
