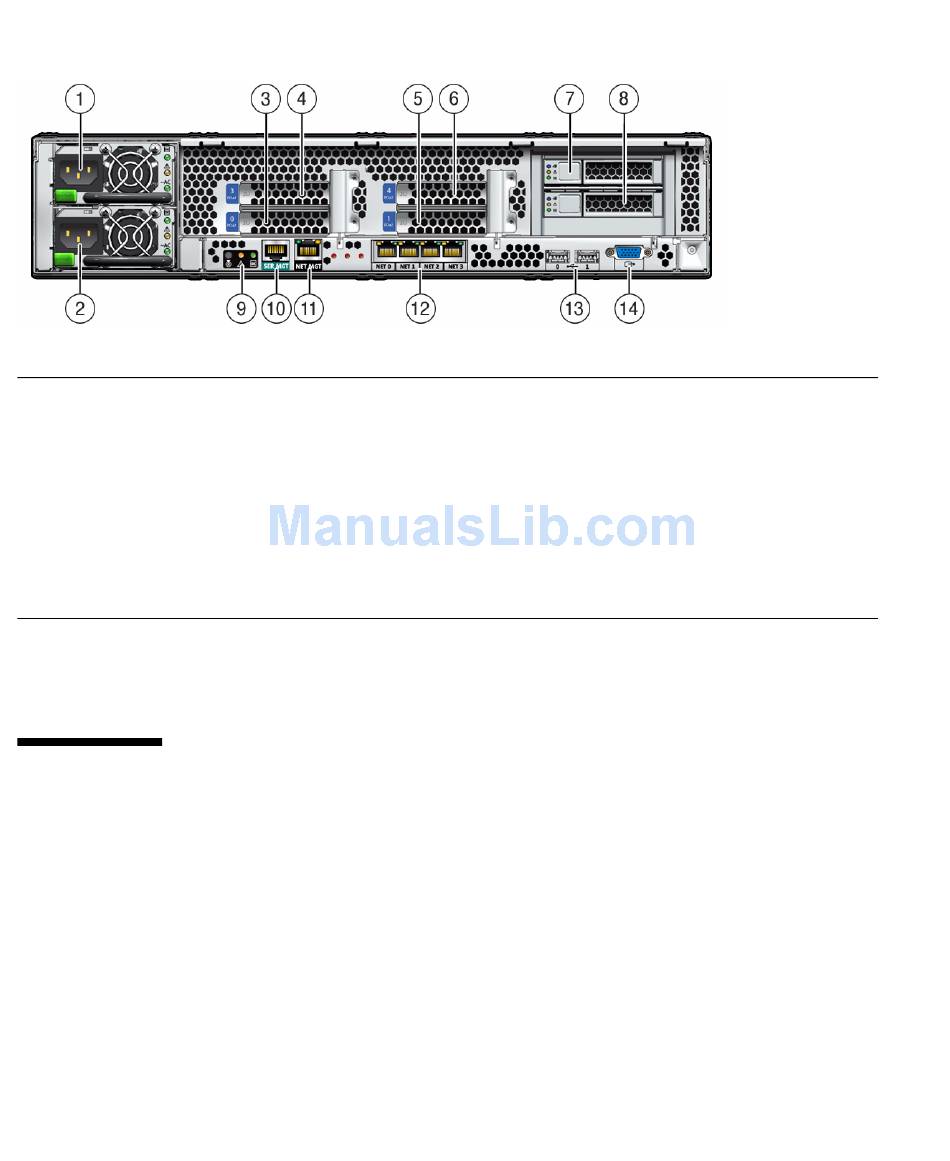

Panel Features of Server With Rear-Mounted Boot Drives
Back
FIGURE 1-4
Figure Legend
1 Power Supply Unit (PSU) 0
2 Power Supply Unit (PSU) 1
3 PCIe2 Slot 0
4 PCIe2 Slot 3
5 PCIe2 Slot 1
6 PCIe2 Slot 4
7 Boot Disk Drive 1
For a detailed description of PCIe2 slots, see
Guidelines" on page
1.5

Server Status Indicators and LEDs

The server provides many status indicators and LEDs to assist you in monitoring and
managing the server.
Section 1.5.1, "Server General Status Indicators" on page 1-11
■
Section 1.5.2, "Server Fan LEDs" on page 1-12
■
Section 1.5.3, "Storage and Boot Drive LEDs" on page 1-13
■
Section 1.5.4, "Power Supply LEDs" on page 1-13
■
Section 1.5.5, "Motherboard LEDs" on page 1-14
■
1-10 Sun Fire X4270 M2 Server Service Manual • May 2011
8 Boot Disk Drive 0
9 Rear Panel System Status LEDs:
Locator LED/Locator button (white)
Service Action Required LED (amber)
Power/OK LED (green)
10 Serial Management Port (SERMGT)
11 Network Management Port (NETMGT)
12 Gigabit Ethernet Ports (0, 1, 2, 3)
13 USB Ports 2.0 (0, 1)
14 HD-15 Video Port
4-22.
Section 4.5.2, "PCIe Card Configuration
