Install Storage Drive - Sun Oracle Sun Fire X4270 M2 Service Manual

3.2.4

Install Storage Drive

Installing a storage drive into a server is a two-step process. You must first install a
storage drive into the drive slot, and then configure that drive to the server.
1. If necessary, remove the blank panel from the chassis.
The server might have covering unoccupied storage drive slots.
2. Determine the drive slot location for the replacement storage drive.
If you removed an existing storage drive from a slot in the server, you must install
the replacement drive in the same slot as the drive that was removed. Storage
drives are physically addressed according to the slot in which they are installed.
See
3. Slide the drive into the drive slot until it is fully seated (
FIGURE 3-6
4. Close the latch to lock the drive in place.
5. Do one of the following:
■
3-8 Sun Fire X4270 M2 Server Service Manual • May 2011
for storage drive locations.

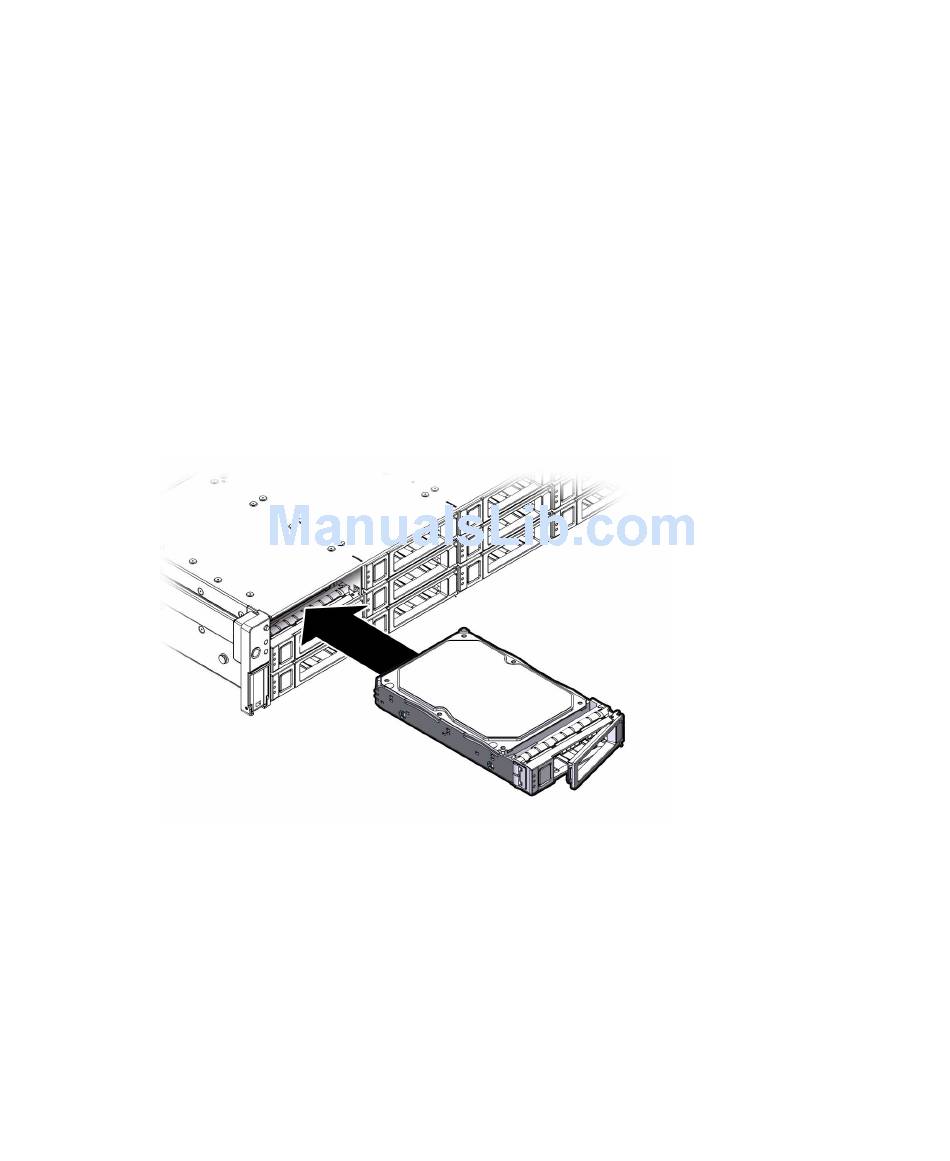

FIGURE 3-2
Installing a Storage Drive
If you have hot-plugged the drive, configure the storage drive.
).
FIGURE 3-6
