Configure Lan Settings For Sp - Sun Oracle Sun Fire X4270 M2 Service Manual

2.5.6.1

Configure LAN Settings for SP

1. Access the BIOS Setup Utility menus.
For instructions, see
page
2. In the BIOS Setup Utility menus, use the arrow keys (or Tab key) to navigate to
the Advanced menu.
3. In the Advanced menu, select IPMI Configuration.
4. In the IPMI Configuration menu, select LAN Configuration.
The LAN Configuration screen appears (
FIGURE 2-10
5. In the LAN Configuration screen, use the arrow keys to select and specify the
appropriate LAN configuration settings.
6. Press F10 to save the changes and exit the BIOS.
Section 2.5.4.1, "Access BIOS Setup Utility Menus" on
2-15.

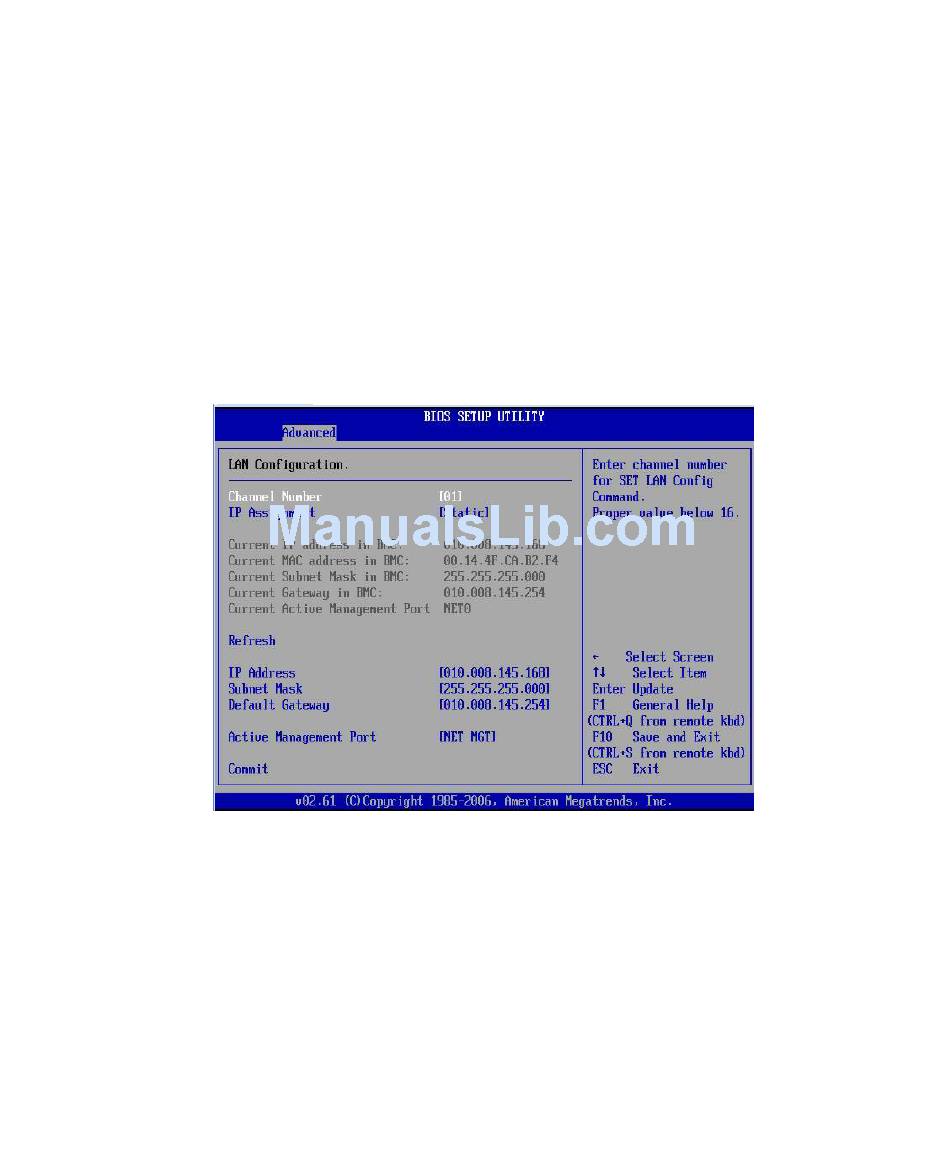

BIOS Setup Utility: Advanced – LAN Configuration
).
FIGURE 2-10
Chapter 2 Preparing to Service the System 2-23
