B.2.7

BIOS Exit Menu Screen

The BIOS Exit options enable you to save changes and exit, discard changes and exit,
discard changes, or load optimal defaults.

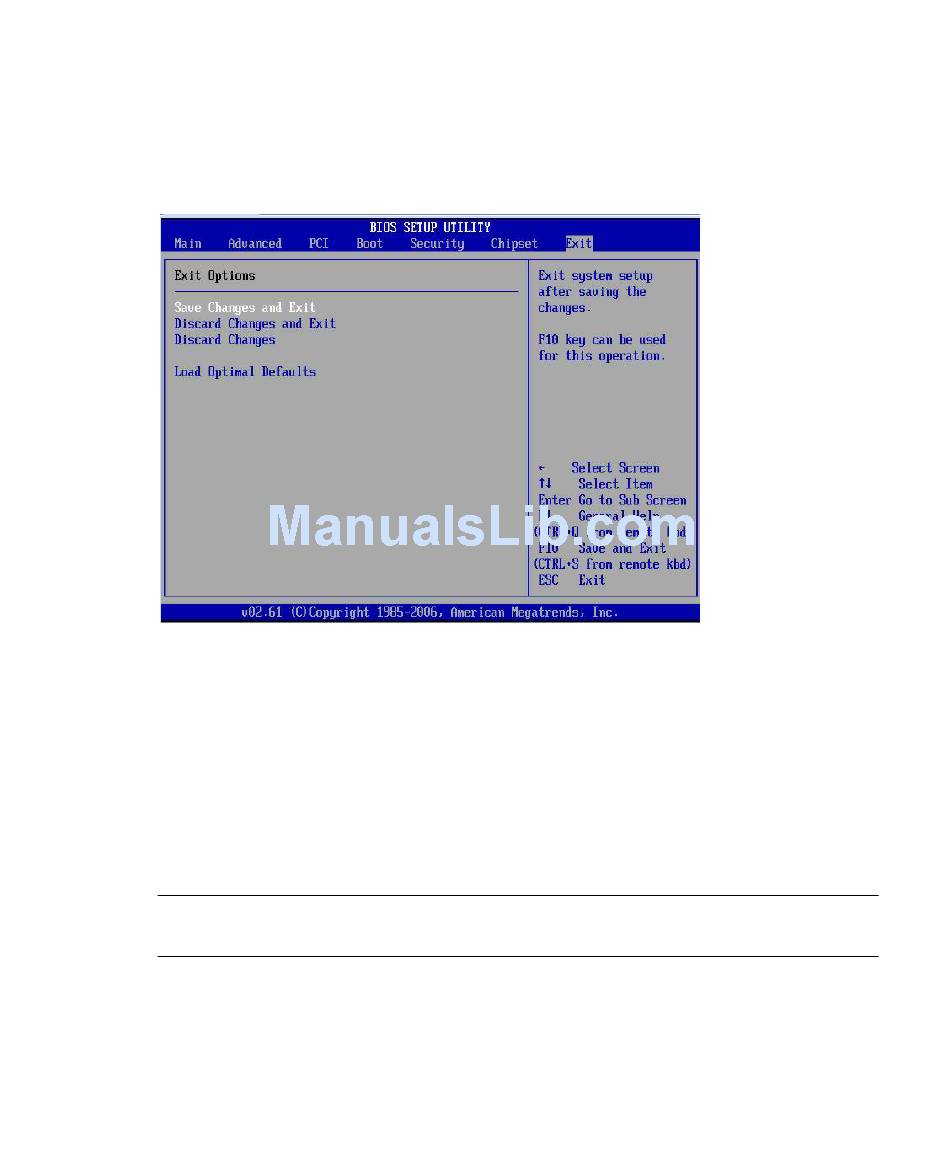

FIGURE B-7

▼ Executing a BIOS Exit Option

1. Use the up and down arrow keys to scroll up and down the BIOS Exit options.
2. Press Enter to select the option.
A confirmation dialog box appears that enables you to save the changes and exit
the Setup Utility or cancel the exit option (
Note – The confirmation dialog box is only shown below for the Save Changes and
Exit option screen. The other exit confirmation screens work in a similar way.
B-10 Sun Fire X4270 M2 Server Service Manual • May 2011
BIOS Setup Utility: Exit – Exit Options - Save Changes and Exit
shows the BIOS Exit screen.
FIGURE B-7
).
FIGURE B-8
