4.1

Motherboard Component Locations

The motherboard components that are replaceable are shown in

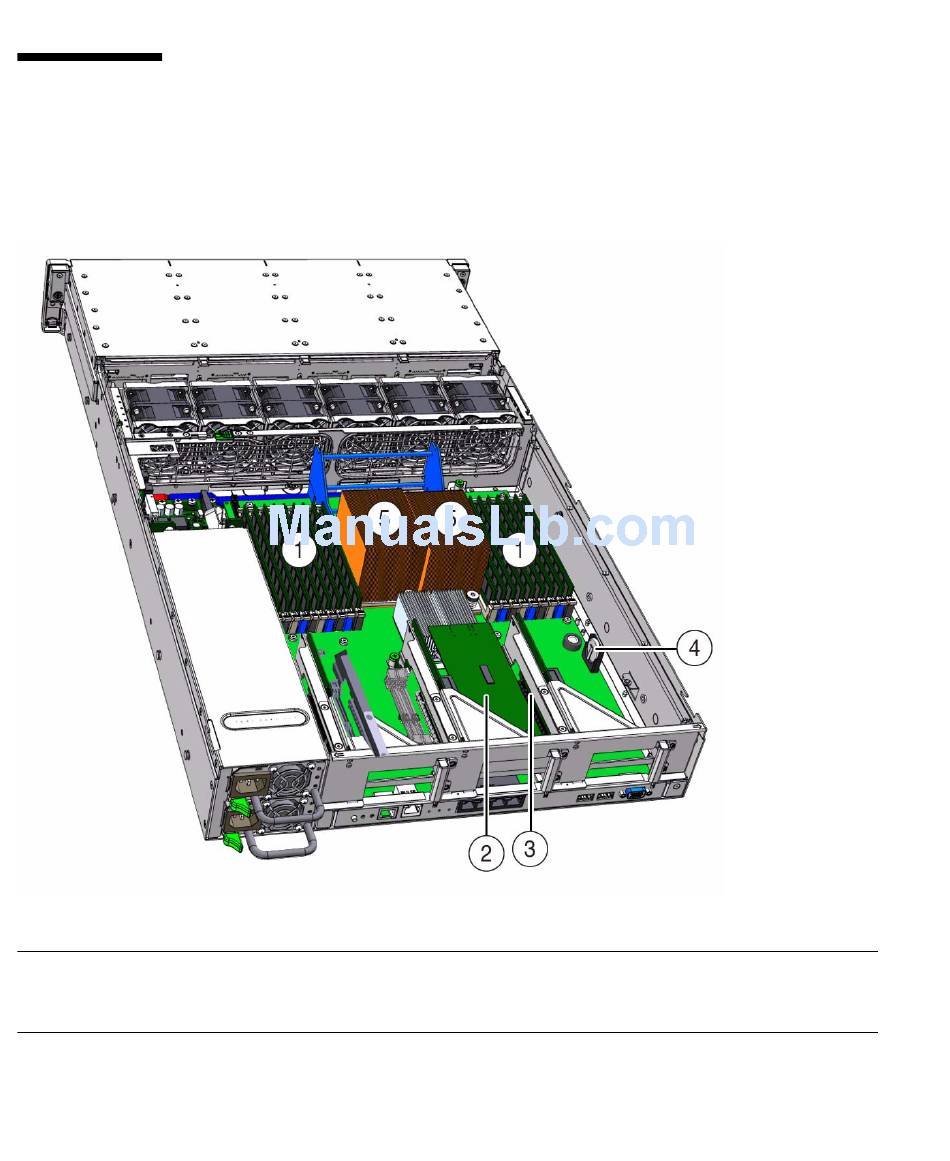

Location of Motherboard Components
FIGURE 4-1
Figure Legend
1
Memory DIMMs
2
PCIe Card
PCIe Riser
3
4-2
Sun Fire X4270 M2 Server Service Manual • May 2011
4
Battery
5
CPUs
.
FIGURE 4-1
