4. Disconnect the power cord from the faulty power supply.
5. Grasp the power supply handle and press the release latch (
6. Pull the power supply out of the chassis [2].

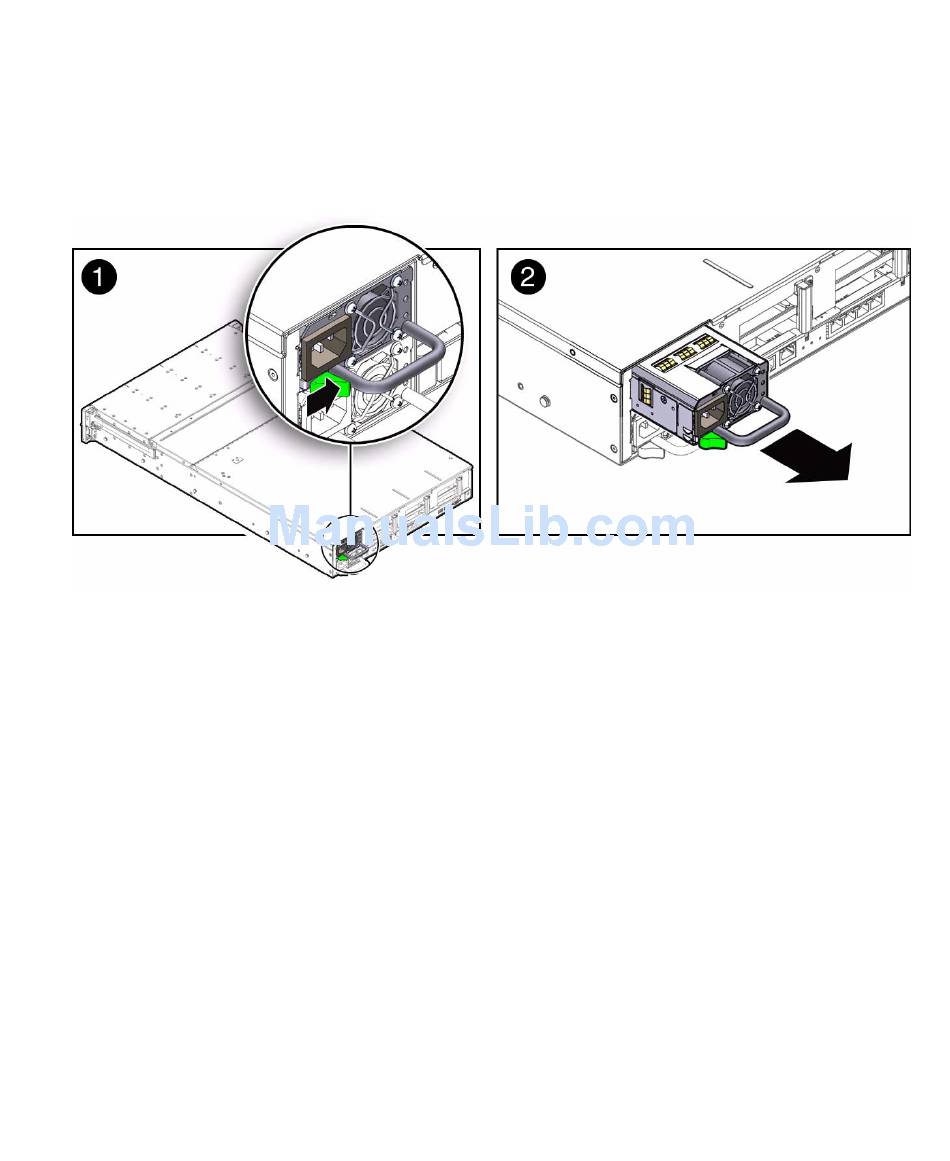

Removing a Power Supply
FIGURE 3-13
3.4.4

Install Power Supply

1. Align the replacement power supply with the empty power supply chassis bay.
2. Slide the power supply into the bay until it is fully seated.
3. Reconnect the power cord to the power supply.
Verify that the AC Present LED is lit.
4. Close the CMA, inserting the end of the CMA into the rear left rail bracket
(
FIGURE 3-12
5. Verify that the following LEDs are extinguished:
■
■
■
).
On power supply: Service Action Required LED
On the front of the chassis: Service Action Required and REAR PS LEDs
On the rear of the chassis: Service Action Required LED
Chapter 3 Servicing Customer-Replaceable Devices
[1]).
FIGURE 3-13
3-19
