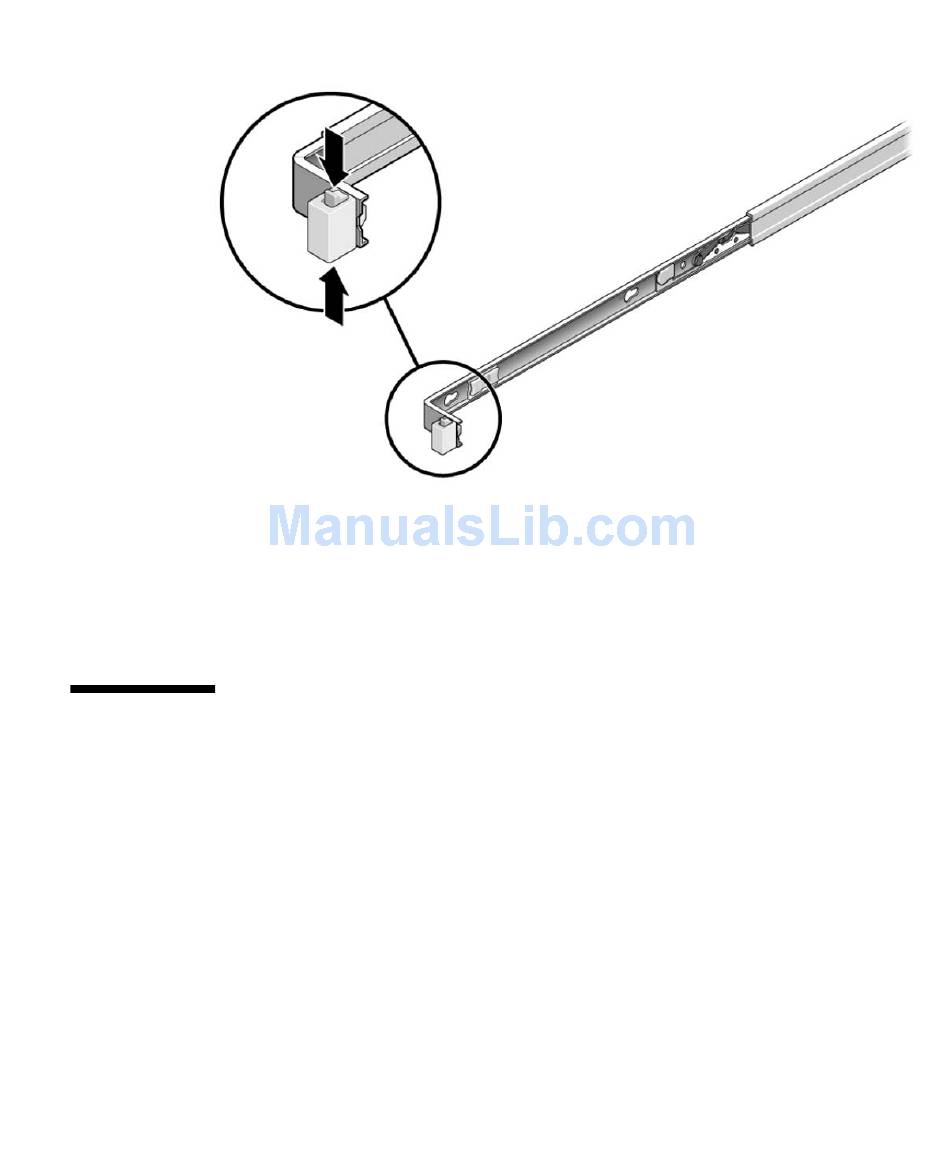

FIGURE 2-12
3. While squeezing the slide release latches, slowly pull the server forward until
the slide rails latch.
The server is now in the extended maintenance position.
2.7

Removing the Server From the Rack

The server must be removed from the rack to service the following components:
Motherboard
■
CPUs
■
Power distribution board
■
SAS expander board
■
Front panel light-pipe assemblies
■
Power Supply Backplane
■
Rear-mounted boot drive assembly
■
Slide Release Latches
Chapter 2 Preparing to Service the System 2-27
