Removing the Rear-Mounted Boot Disk Drive Cage

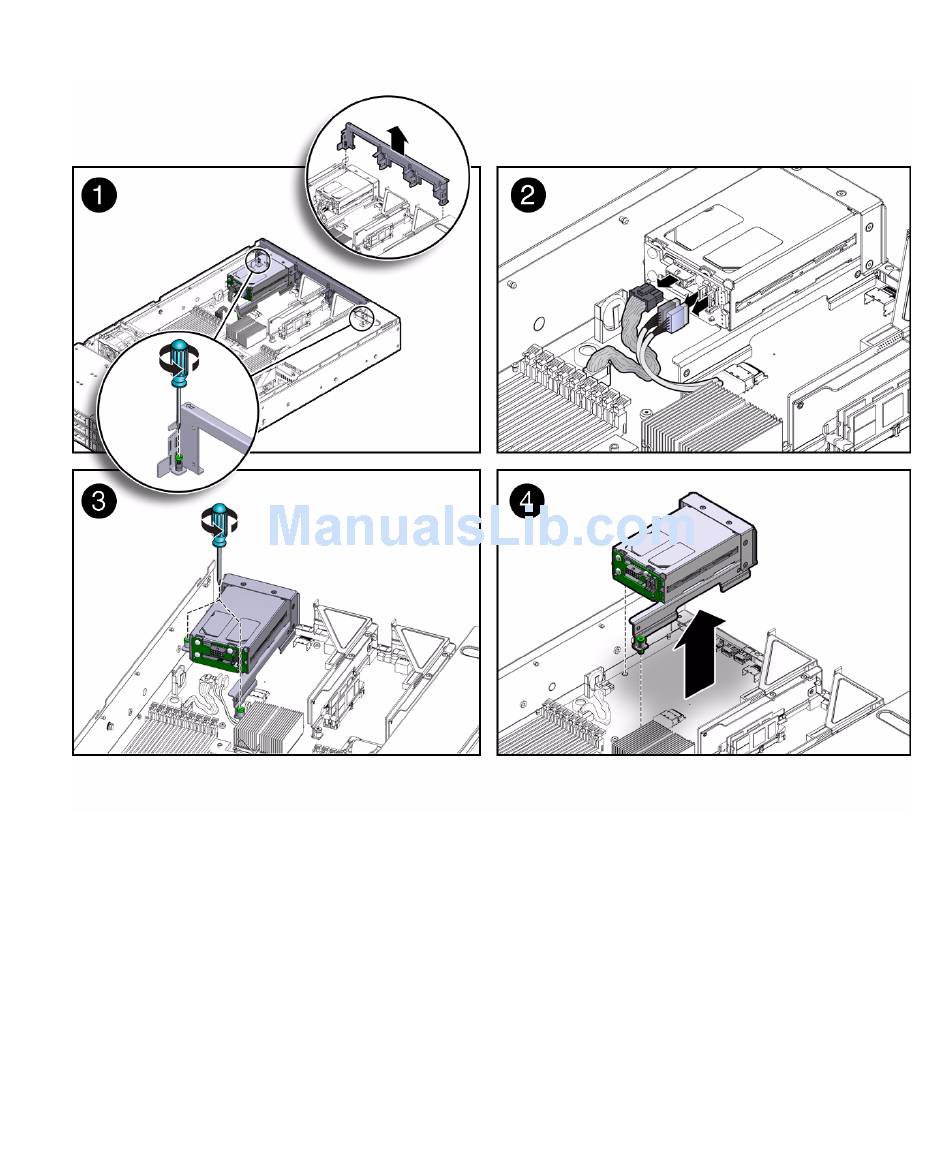

FIGURE 5-11
5.9.2

Install the Rear-Mounted Boot Disk Drive Cage

1. Install the rear-mounted boot disk drive cage (
a. Lower the boot disk drive cage into the server chassis [4].
b. Tighten the two green captive that secure the cage to the chassis [3].
c. Reconnect the boot disk drive cage power cable connector [2].
d. Reconnect the two SATA cable connectors to the disk drive cage [2].
FIGURE 5-11
Chapter 5
Servicing Infrastructure Components
).
5-29
