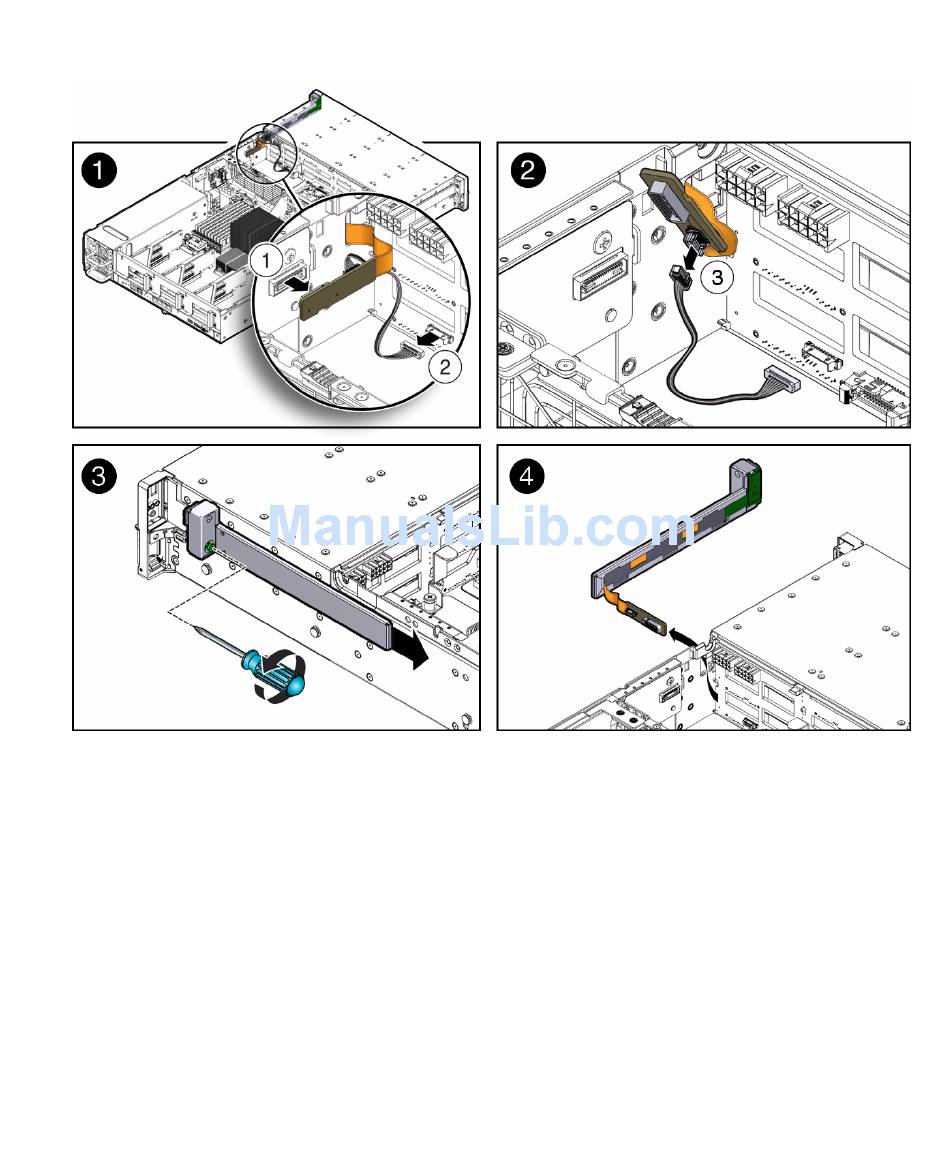

Removing the Right LED/USB Module
FIGURE 5-6
5.5.2

Install the Right LED/USB Module

1. Install the right LED/USB module (
a. Insert the LED/USB flex cable in through the opening chassis side wall [4].
b. Position the LED/USB module on the server's front panel [3].
c. Tighten the No. 2 Phillips screw that secures the LED/USB module to the
d. Connect the LED cable to the LED/USB flex cable [2].
e. Connect the LED cable to the disk backplane [1].
server front panel [3].
).
FIGURE 5-7
Chapter 5 Servicing Infrastructure Components 5-15
