Install Power Distribution Board - Sun Oracle Sun Fire X4270 M2 Service Manual

Removing the Power Distribution Board

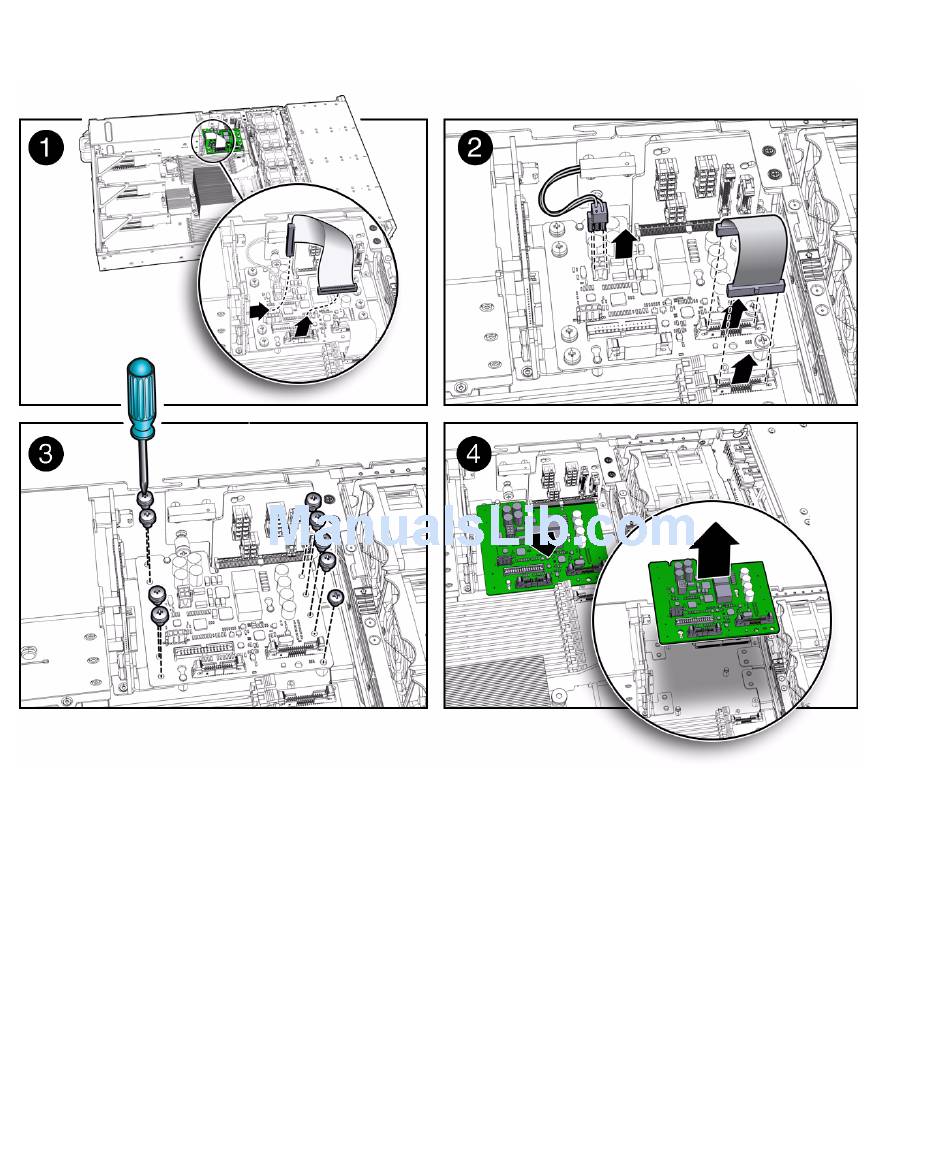

FIGURE 5-8
5.6.2

Install Power Distribution Board

1. Install the power distribution board (
a. Lower the power distribution board into the chassis [4].
b. Slide the power distribution board toward the chassis wall until it plugs into
5-20 Sun Fire X4270 M2 Server Service Manual • May 2011
The power distribution board fits over a series of mushroom standoffs in the
floor of the chassis.
the connector board [4].
).
FIGURE 5-8
