Install Fan Module - Sun Oracle Sun Fire X4270 M2 Service Manual

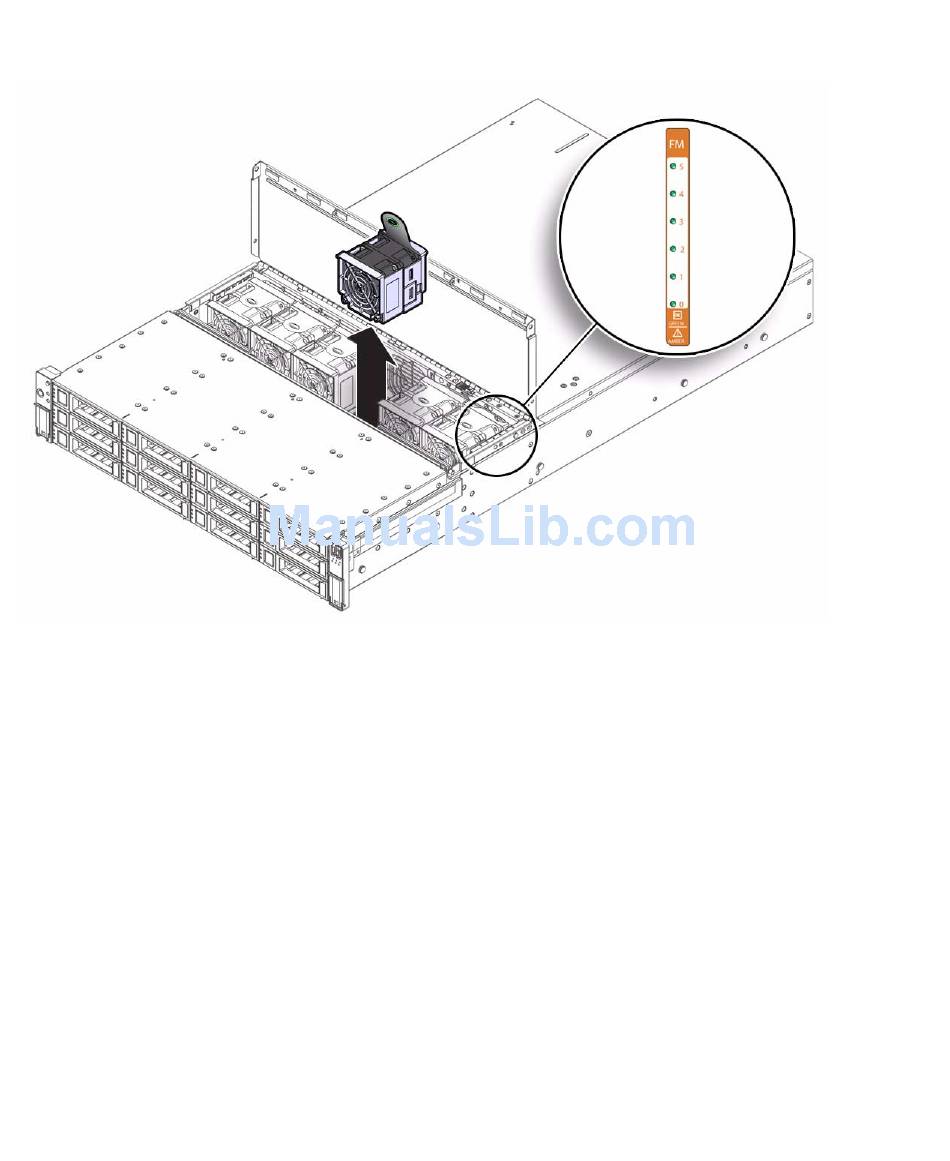

Location of Fan Status LEDs and Fan Module Removal
FIGURE 3-9
3.3.5

Install Fan Module

1. With the top cover door open, install the replacement fan module into the server
(
FIGURE 3-10
a. Grasp the fan module with your thumb and fingers and position it so that the
b. Apply firm, downward pressure to the fan module to fully seat it into the fan
3-14 Sun Fire X4270 M2 Server Service Manual • May 2011
).
connector on the underside of the fan module aligns with connector on the
fan power board.
power board.
