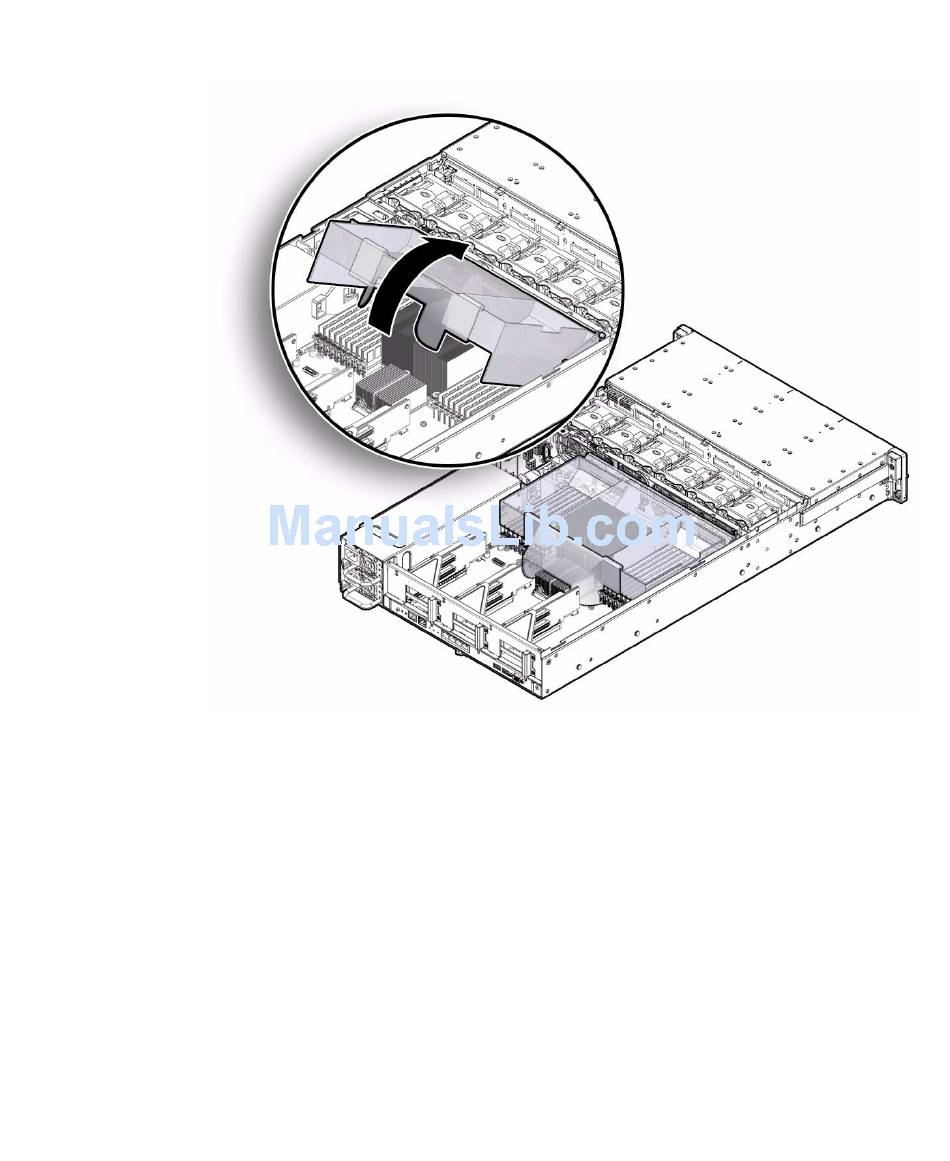

FIGURE 4-7
4.3.2

Remove Air Baffle

1. Prepare the server for service.
a. Power off the server and disconnect the power cord (or cords) from the server
b. Extend the server to the maintenance position.
Opening the Air Baffle
power supply (or supplies).
See Section 2.4.2, "Power Off the Server" on page
See Section 2.6, "Extending the Server to the Maintenance Position" on
page 2-26.
2-4.
Chapter 4 Servicing Motherboard Components 4-15
