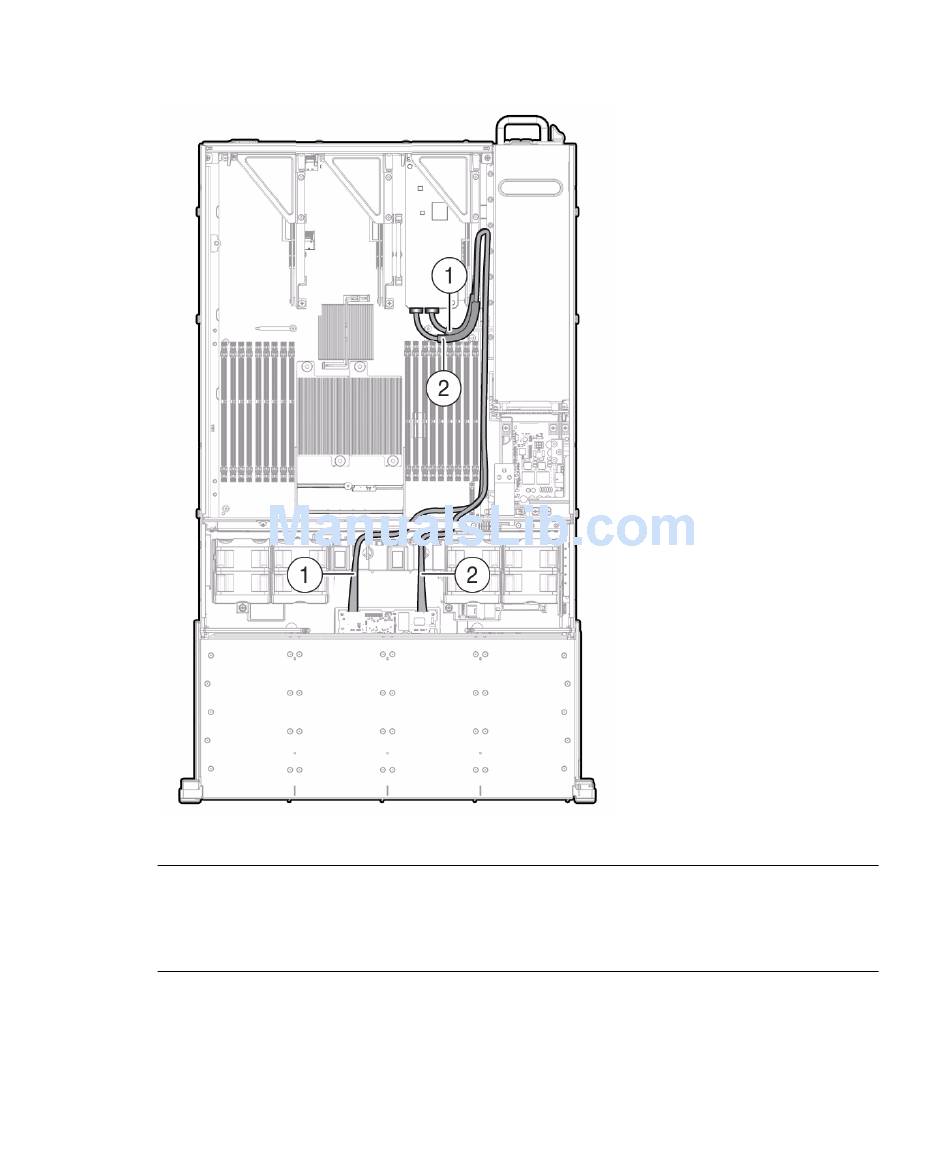

FIGURE 5-12
Note – In the above figure,
the cable that connects to the left connector [1] on the SAS expander board (as viewed
from the from the front of the server) connects to right connector [1] on the HBA
card, and vice versa.
5-32 Sun Fire X4270 M2 Server Service Manual • May 2011
Removing Storage Drive Cables in a Server Without the Rear-mounted Disk
Drive Cage Installed
FIGURE 5-12
, the numbered call outs (1, 2) highlight that
