FIGURE 1-2
2.5-inch, storage drives.

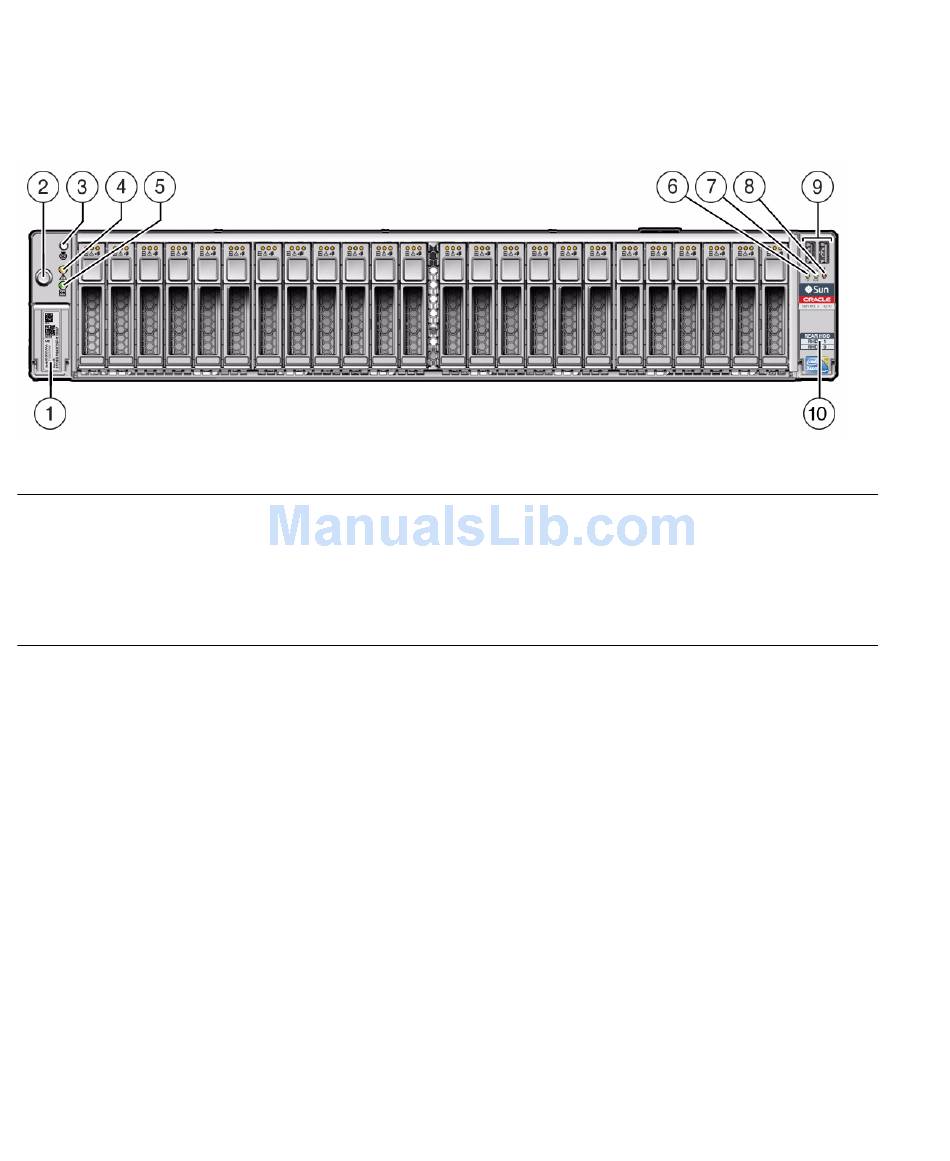

Front Panel Features on Server With 24 Storage Drives
FIGURE 1-2
Figure Legend
1 Product Serial Number (PSN) Label and Radio
Frequency Identification (RFID) tag
2 Power button
3 Locator LED/Locator button
4 Service Action Required LED
5 Power/OK LED
1-8 Sun Fire X4270 M2 Server Service Manual • May 2011
shows front panel features on the Sun Fire X4270 M2 Server with 24,
6 System Overtemperature LED
7 PS (Power Supply) REAR Fault LED
8 TOP FAN Fault LED
9 USB Ports (2)
10 Disk Drive Layout Label
