2.5.4.1

Access BIOS Setup Utility Menus

1. Power-on or power-cycle the server.

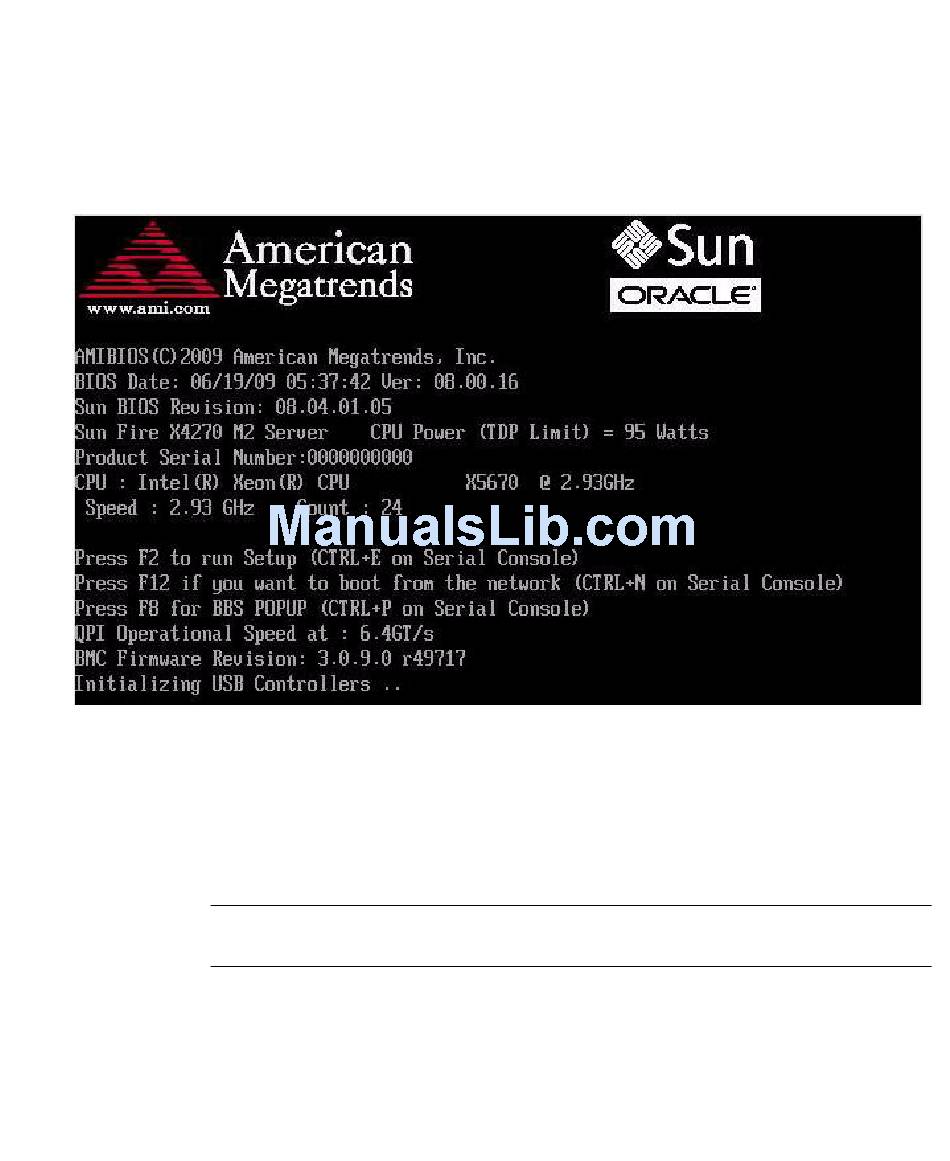

The Boot Option screen appears (
Boot Option Screen
FIGURE 2-2
2. To enter the BIOS Setup Utility, do the following:
a. Wait for the last line of the screen output to change to Initializing USB
b. When Done appears, immediately press the F2 key.
Note – If there is an error during the boot process, you can press F1 to access the
BIOS Setup Utility.
The BIOS Setup Utility dialog appears (
Controllers..Done
This will take several seconds.
).
FIGURE 2-2
).
FIGURE 2-3
