Removing the Top Cover

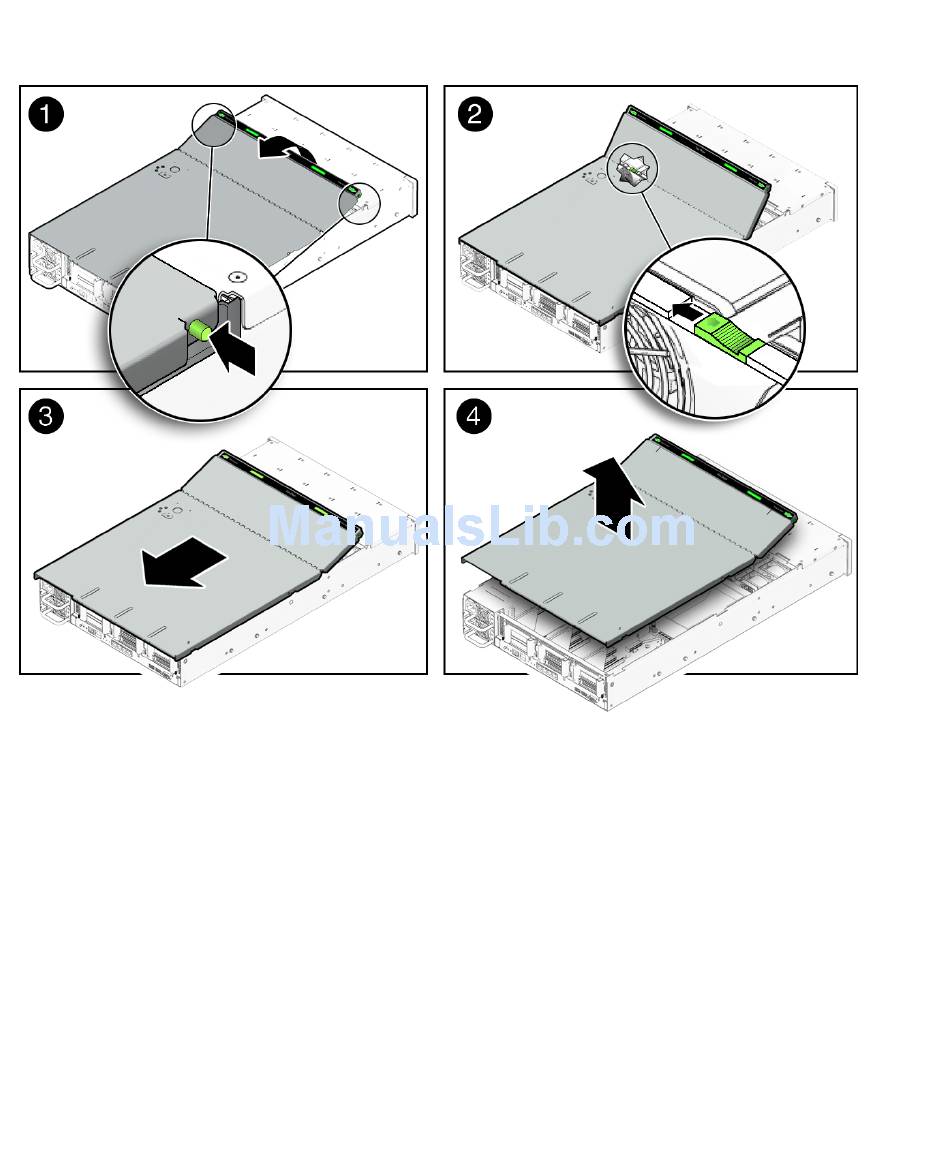

FIGURE 2-15
3. Release the top cover [2].
Locate the green tab to the right (facing the front of the server) and to the rear of
the fan modules and slide the tab to the right-most position [2].
4. Slide the top cover toward the rear of the server about a 0.5 inch (12 mm) [3].
5. Lift up and remove the top cover [4].
