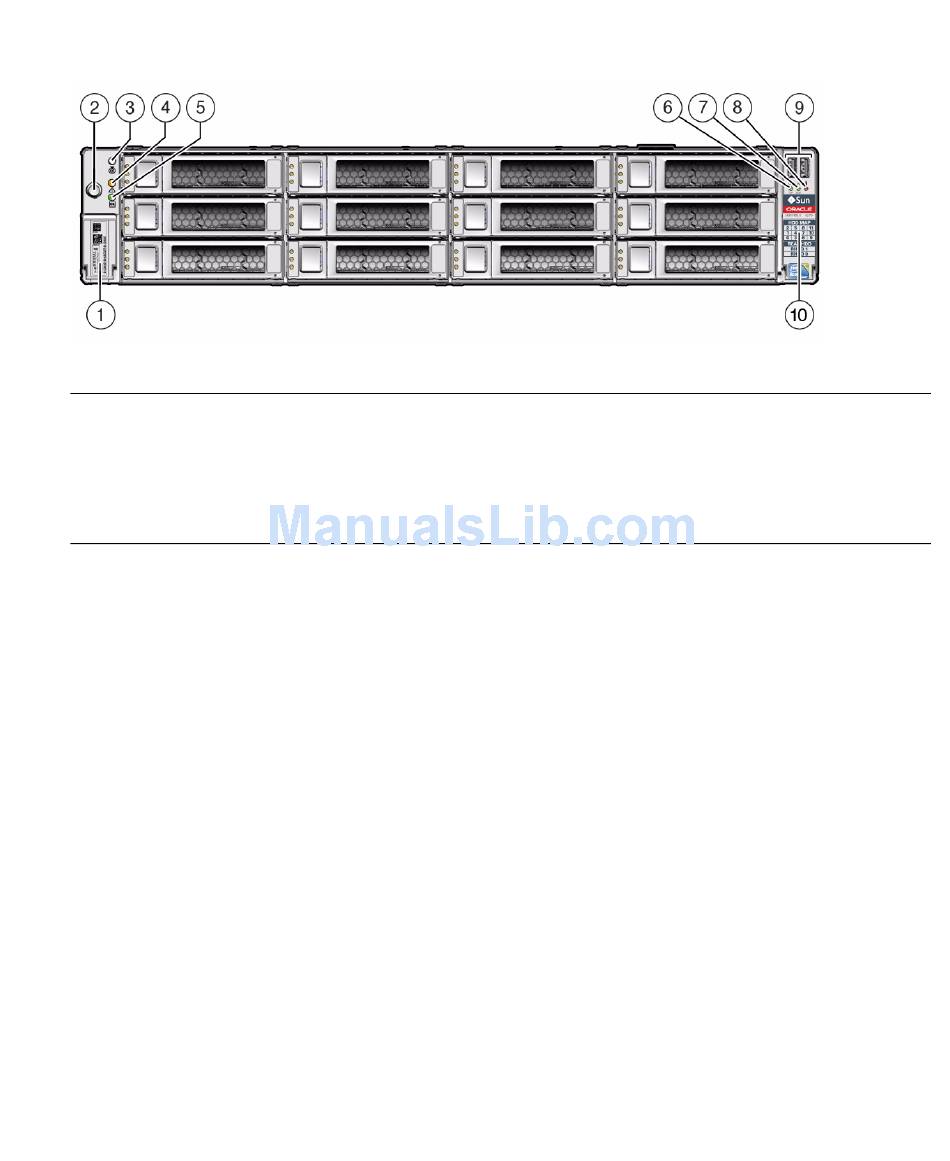

Front Panel Features on Server With 12 Storage Drives
FIGURE 1-1
Figure Legend
1
Product Serial Number (PSN) label and Radio
Frequency Identification (RFID) tag
2
Power Button
3
Locator LED/Button
4
Service Action Required LED (System Level)
5
Power/OK LED
6
TOP FAN Fault LED
7
PS (Power Supply) REAR Fault LED
8
System Overtemperature Fault LED
9
USB ports (2)
10
Disk Configuration Label
Chapter 1
Sun Fire X4270 M2 Server Overview
1-7
