Arranging The Stat-Bins - Comdial DXP Plus Manual

Programming QuickQ

Arranging The Stat-Bins

QuickQ has six levels of stat-bins for answered and abandoned call statistics. Use the following procedure
to setup the time bins that are used to collect the system statistics.
1. Pull down the System-Setup menu and select the Stat-Bin option.
2. A pull down menu appears with Answer Bin & Abandon Bin.
3. Select Answer Bin and the Answer Time Bin window appears. Highlight the Time Bin 01 box
(Figure 3-11).
4. Type the time bin parameters in minutes and seconds. Repeat for all remaining time bins. You can
move from one time bin to another by pressing Enter. Save the newly entered data by clicking on the
Save-To-Disk menu bar item.
5. The Save Answer Time Bin window with Yes and No option appears. Click on Yes or press
saves the data entered and closes all windows. Click on No or press
Time Bin window and returns to the Answer Time Bin window. Press
box to exit this window.
6. Pull down the Stat-Bin menu and select Abandon Bin option. Repeat step 4. The Save Abandon
Time Bin window appears after selecting Save-To-Disk on menu. Click on Yes or press
saves the data entered and closes all windows. Click on No or press
Time Bin window and returns to the Answer Time Bin window. Press
box to exit this window.
3-12 Programming The QuickQ System

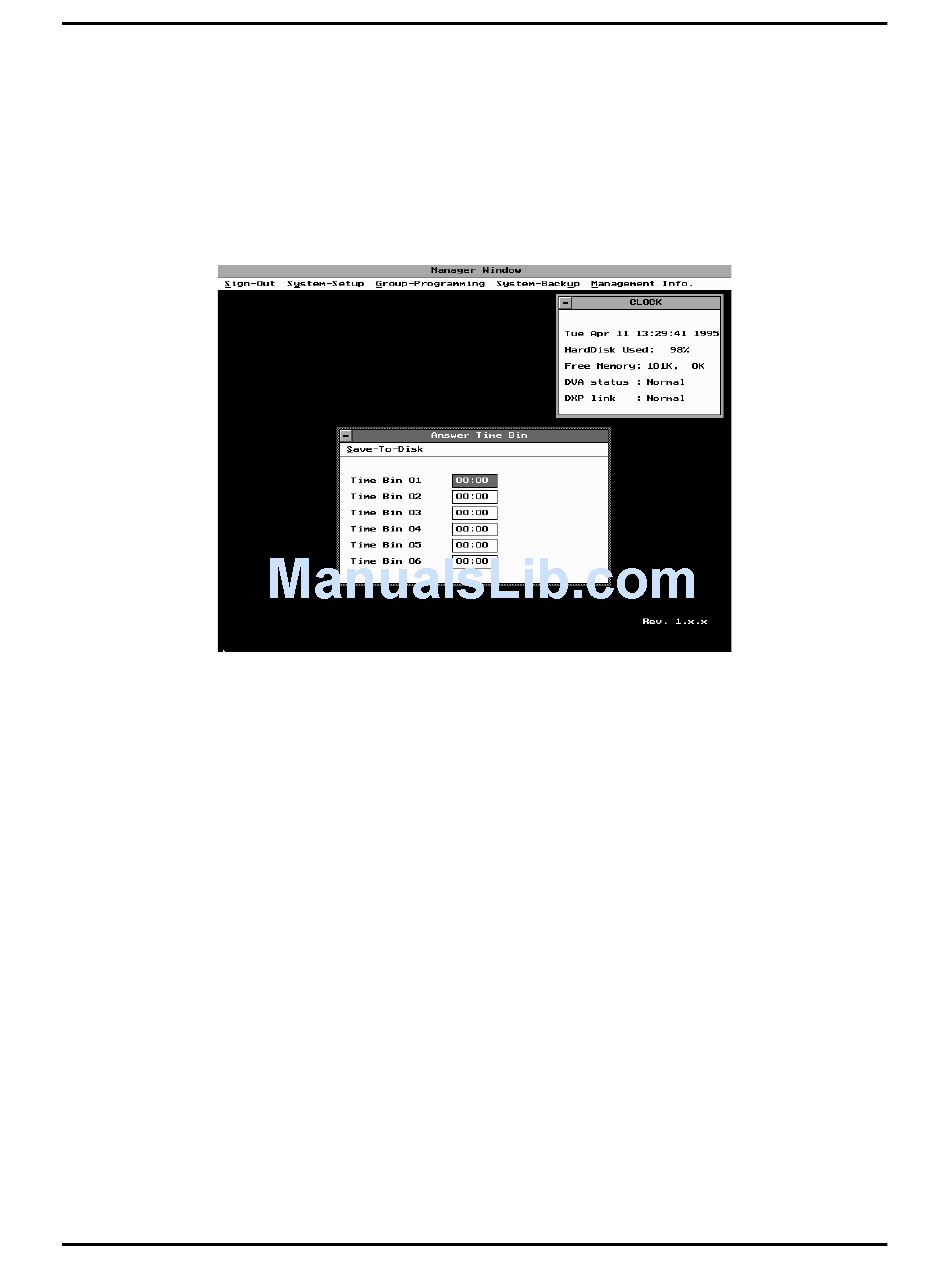

Figure 3-11. Answer Time Bin Window
closes the Save Answer
Alt N
or double click on the close
Esc
closes the Save Answer
Alt N
Esc or double click on the close
GCA70-271
Alt Y
Alt Y
