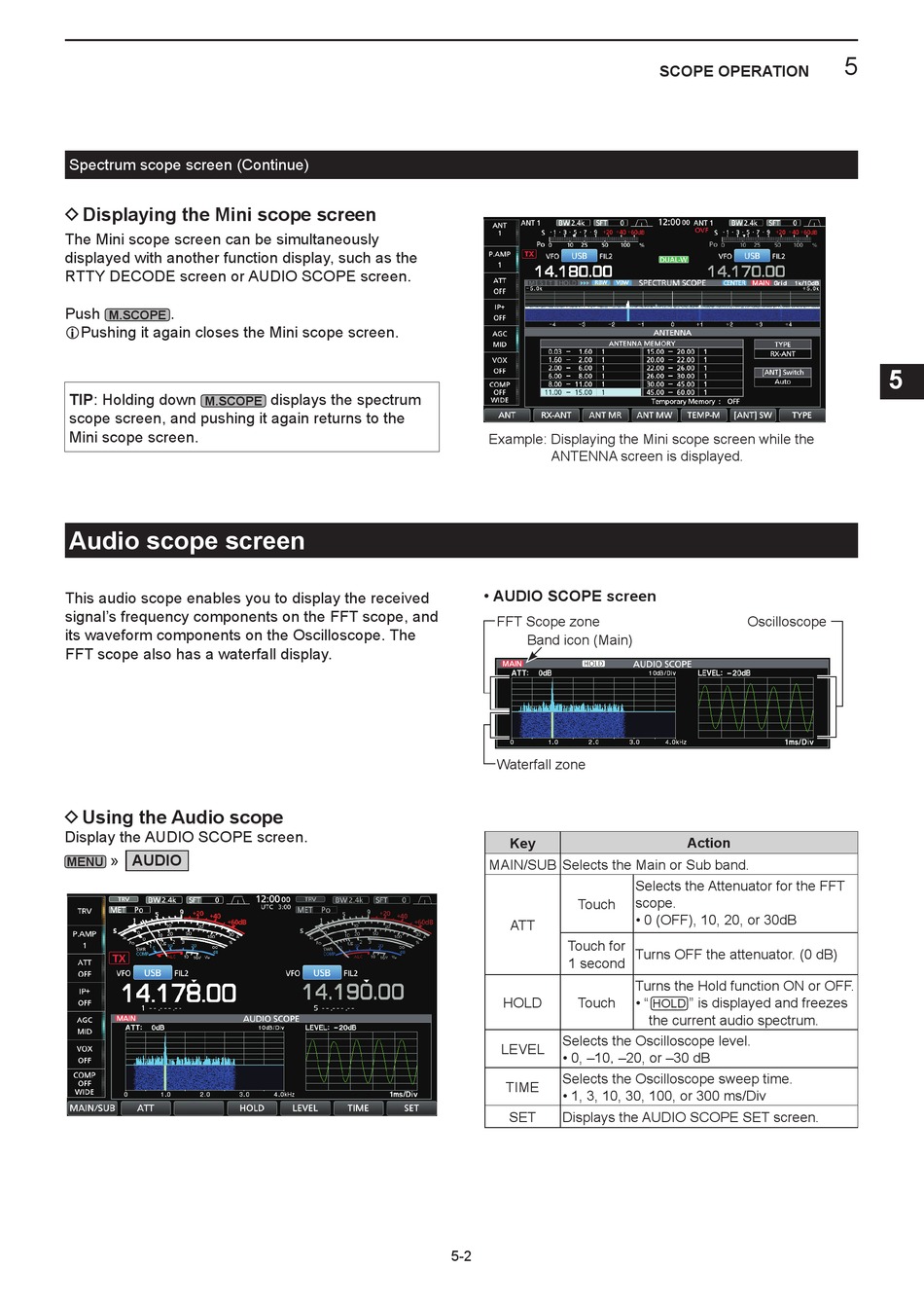

Spectrum scope screen (Continue)

D Displaying the Mini scope screen

The Mini scope screen can be simultaneously
displayed with another function display, such as the
RTTY DECODE screen or AUDIO SCOPE screen.
Push .
M.SCOPE
LPushing it again closes the Mini scope screen.
TIP: Holding down
M.SCOPE
scope screen, and pushing it again returns to the
Mini scope screen.

Audio scope screen

This audio scope enables you to display the received
signal's frequency components on the FFT scope, and
its waveform components on the Oscilloscope. The
FFT scope also has a waterfall display.

D Using the Audio scope

Display the AUDIO SCOPE screen.
» AUDIO
MENU
displays the spectrum
Example: Displaying the Mini scope screen while the
ANTENNA screen is displayed.
• AUDIO SCOPE screen
FFT Scope zone
Band icon (Main)
Waterfall zone
Key
MAIN/SUB Selects the Main or Sub band.
Touch
ATT
Touch for
1 second
HOLD Touch
Selects the Oscilloscope level.
LEVEL
• 0, –10, –20, or –30 dB
Selects the Oscilloscope sweep time.
TIME
• 1, 3, 10, 30, 100, or 300 ms/Div
SET Displays the AUDIO SCOPE SET screen.
5-2
SCOPE OPERATION
Oscilloscope
Action
Selects the Attenuator for the FFT
scope.
• 0 (OFF), 10, 20, or 30dB
Turns OFF the attenuator. (0 dB)
Turns the Hold function ON or OFF.
• " " is displayed and freezes
HOLD
the current audio spectrum.
