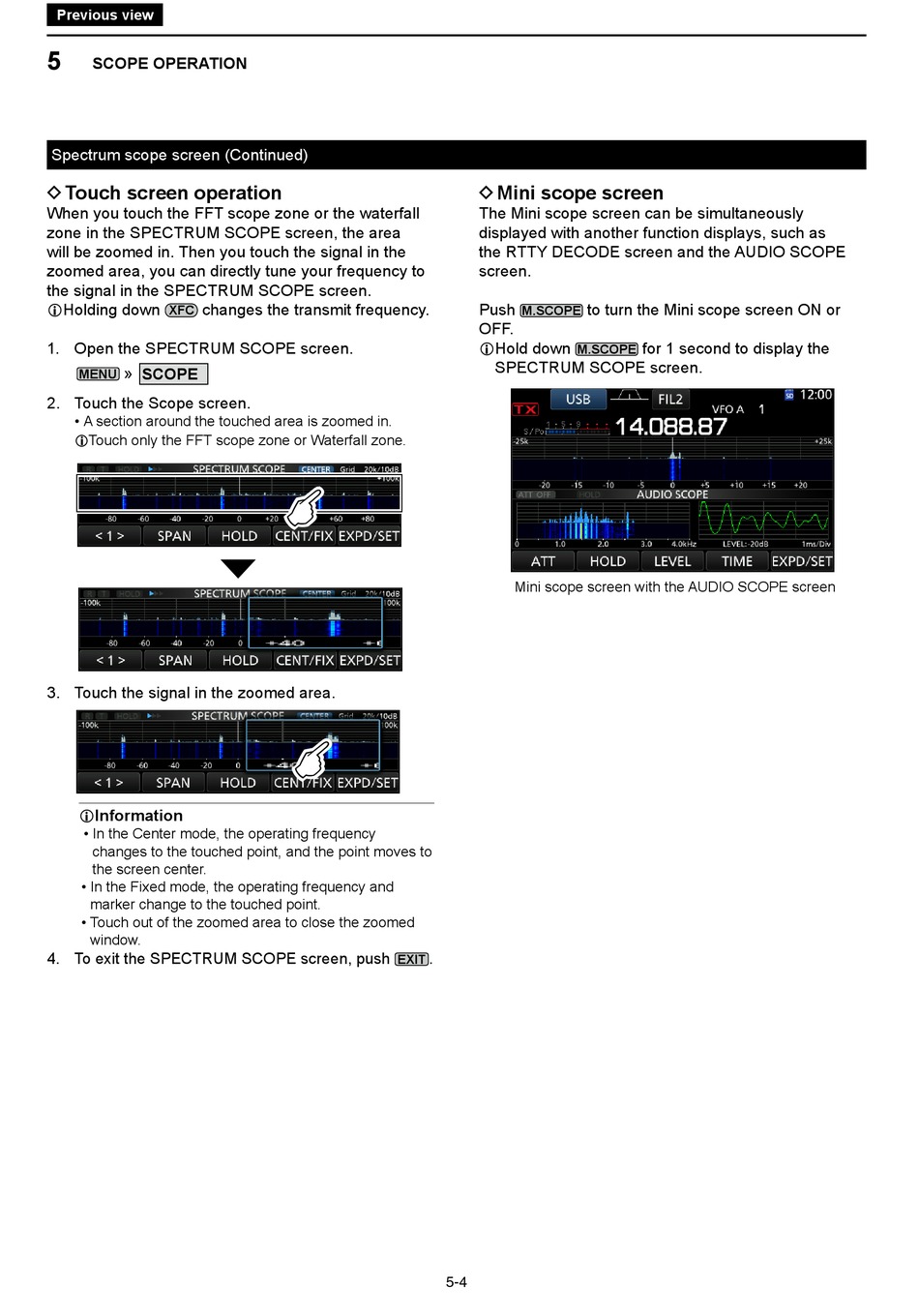

SCOPE OPERATION
Spectrum scope screen (Continued)

D Touch screen operation

When you touch the FFT scope zone or the waterfall
zone in the SPECTRUM SCOPE screen, the area
will be zoomed in. Then you touch the signal in the
zoomed area, you can directly tune your frequency to
the signal in the SPECTRUM SCOPE screen.
L Holding down changes the transmit frequency.
XFC
1. Open the SPECTRUM SCOPE screen.
» SCOPE
MENU
2. Touch the Scope screen.
• A section around the touched area is zoomed in.
LTouch only the FFT scope zone or Waterfall zone.
3. Touch the signal in the zoomed area.
Innormation
L
• In the Center mode, the operating frequency
changes to the touched point, and the point moves to
the screen center.
• In the Fixed mode, the operating frequency and
marker change to the touched point.
• Touch out of the zoomed area to close the zoomed
window.
4. To exit the SPECTRUM SCOPE screen, push

D Mini scope screen

The Mini scope screen can be simultaneously
displayed with another function displays, such as
the RTTY DECODE screen and the AUDIO SCOPE
screen.
Push
M.SCOPE
OFF.
L Hold down
SPECTRUM SCOPE screen.
Mini scope screen with the AUDIO SCOPE screen
.
EXIT
5-4
to turn the Mini scope screen ON or
for 1 second to display the
M.SCOPE
