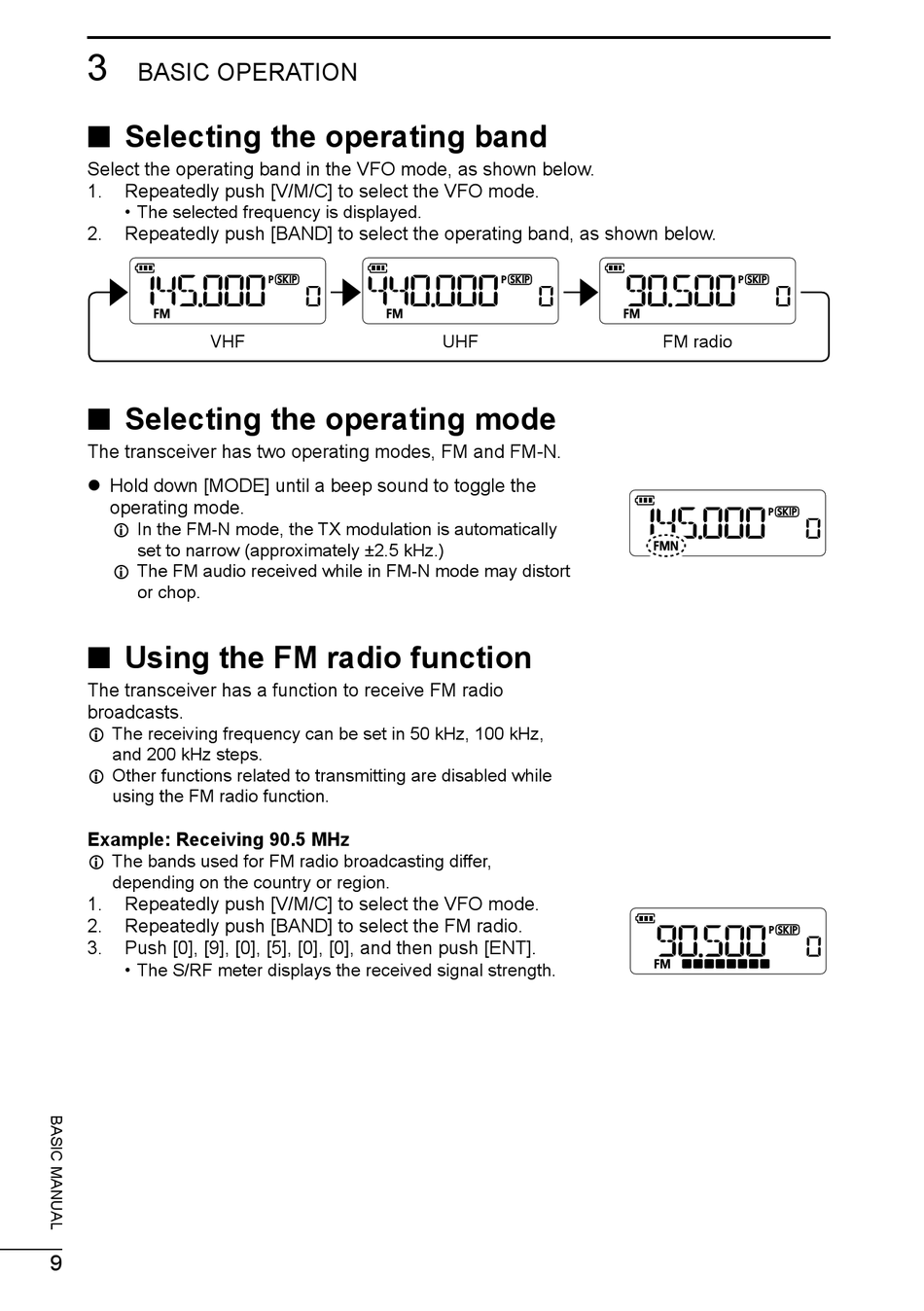

Selecting The Operating Band; Selecting The Operating Mode; Using The Fm Radio Function - Icom IC-T10 Basic Manual

3
BASIC OPERATION

■ Selecting the operating band

Select the operating band in the VFO mode, as shown below.
1. Repeatedly push [V/M/C] to select the VFO mode.
• The selected frequency is displayed.
2. Repeatedly push [BAND] to select the operating band, as shown below.
VHF

■ Selecting the operating mode

The transceiver has two operating modes, FM and FM-N.
z Hold down [MODE] until a beep sound to toggle the
operating mode.
L In the FM-N mode, the TX modulation is automatically
set to narrow (approximately ±2.5 kHz.)
L The FM audio received while in FM-N mode may distort
or chop.

■ Using the FM radio function

The transceiver has a function to receive FM radio
broadcasts.
L The receiving frequency can be set in 50 kHz, 100 kHz,
and 200 kHz steps.
L Other functions related to transmitting are disabled while
using the FM radio function.
Example: Receiving 90.5 MHz
L The bands used for FM radio broadcasting differ,
depending on the country or region.
1. Repeatedly push [V/M/C] to select the VFO mode.
2. Repeatedly push [BAND] to select the FM radio.
3. Push [0], [9], [0], [5], [0], [0], and then push [ENT].
• The S/RF meter displays the received signal strength.
9
UHF FM radio
