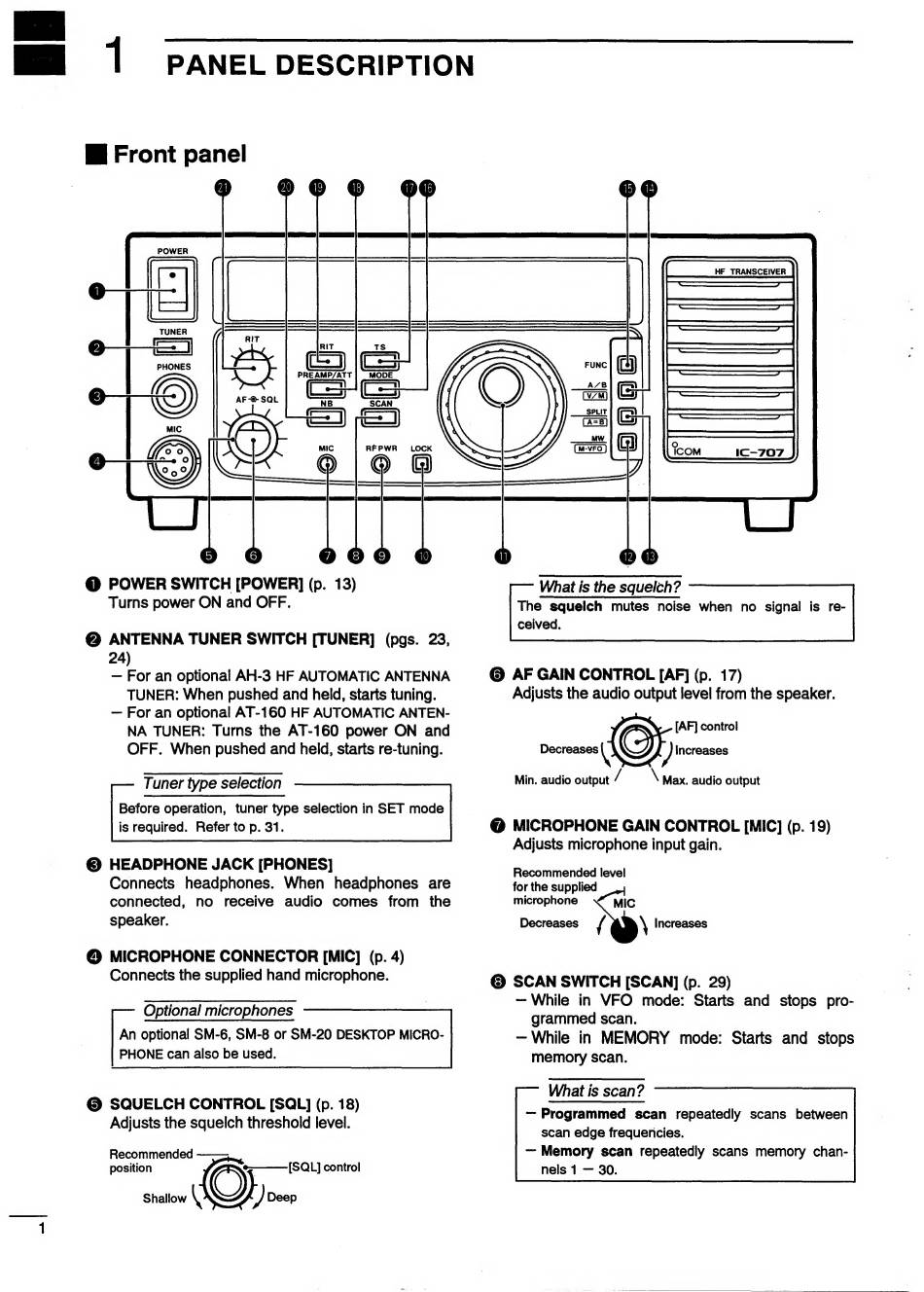

1 PANEL DESCRIPTION
Wi Front panel
@ POWER SWITCH [POWER] (p. 13)
Turns power ON and OFF.
@ ANTENNA TUNER SWITCH [TUNER] (pgs. 23,
24)
— For an optional AH-3 HF AUTOMATIC ANTENNA
TUNER: When pushed and held, starts tuning.
— For an optional AT-160 HF AUTOMATIC ANTEN-
NA TUNER: Turns the AT-160 power ON and
OFF. When pushed and held, starts re-tuning.
Tuner type selection
Before operation, tuner type selection in SET mode
is required. Refer to p. 31.
© HEADPHONE JACK [PHONES]
Connects headphones. When headphones are
connected, no receive audio comes from the
speaker.
@ MICROPHONE CONNECTOR [MIC] (p. 4)
Connects the supplied hand microphone.
Optional microphones -
An optional SM-6, SM-8 or SM-20 DESKTOP MICRO-
PHONE can also be used.
© SQUELCH CONTROL [SQL] (p. 18)
Adjusts the squelch threshold level.
Recommended
position
Shallow \ ) Deep
e-———-[SQL] control
HF TRANSCEIVER
ic Ne
ee ee
ee
pa ee
PE PT IE aia
aaa
ECP andaran ah jam
aia
Ar RT
Sie yara
EL eS aana aaa an an anah
ia
Ee anaa aaa nag na
M
EE
(e)
ICOM IC-707
What is the squelch?
The squelch mutes noise when no signal is re-
ceived.
@ AF GAIN CONTROL [AF] (p. 17)
Adjusts the audio output level from the speaker.
[AF] control
Decreases \ ) Increases
Min. audio output / \ Max. audio output
@ MICROPHONE GAIN CONTROL [MIC] (p. 19)
Adjusts microphone input gain.
Recommended level
for the supplied a
microphone MIC
ay Increases
© SCAN SWITCH [SCAN] (p. 29)
— While in VFO mode: Starts and stops pro-
grammed scan.
— While in MEMORY mode: Starts and stops
memory scan.
Decreases
What is scan?
— Programmed scan repeatedly scans between
scan edge frequericies.
— Memory scan repeatedly scans memory chan-
nels 1 — 30.
