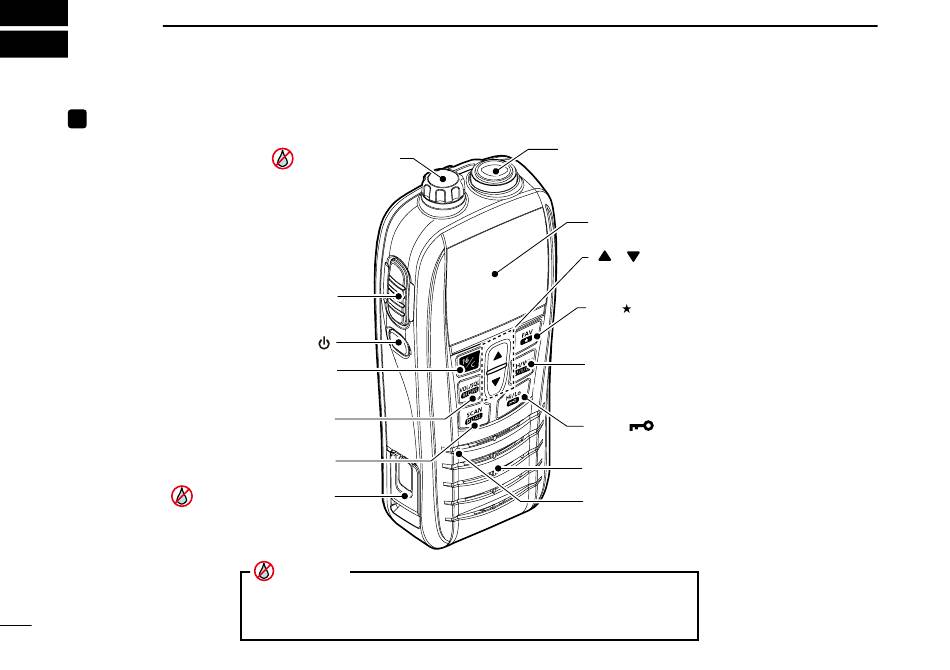

PANEL DESCRIPTION
Front, top and side panels
CHANNEL 16/CALL CHANNEL KEY
VOLUME/SQUELCH/MONITOR KEY
[CHARGE] SOCKET
(Not for data communication.)
4
[SP/MIC] JACK
PTT
POWER KEY [ ]
[16/C]
[VOL/SQL MONI]
[SCAN DUAL]
SCAN/DUAL KEY
CAUTION:
• Close up securely when no cable is connected.
• Make sure dust or other material does not adhere to the rubber seal.
Otherwise, waterproof protection may not be guaranteed.
FELLECS-TECH | inbox@fellecs-tech.com | www.fellecs-tech.com
Antenna connector
Function Display
[
]/[
]
UP/DOWN KEYS
[FAV ]
FAVORITE CHANNEL KEY
[CH/WX U/I/C] (For IC-M25)
[CH] (For IC-M25EURO)
CHANNEL/WEATHER CHANNEL KEY
[Hi/Lo
]
TRANSMIT POWER/LOCK KEY
Speaker
Microphone
