Sun Microsystems Server X4-2 Installation Manual page 85

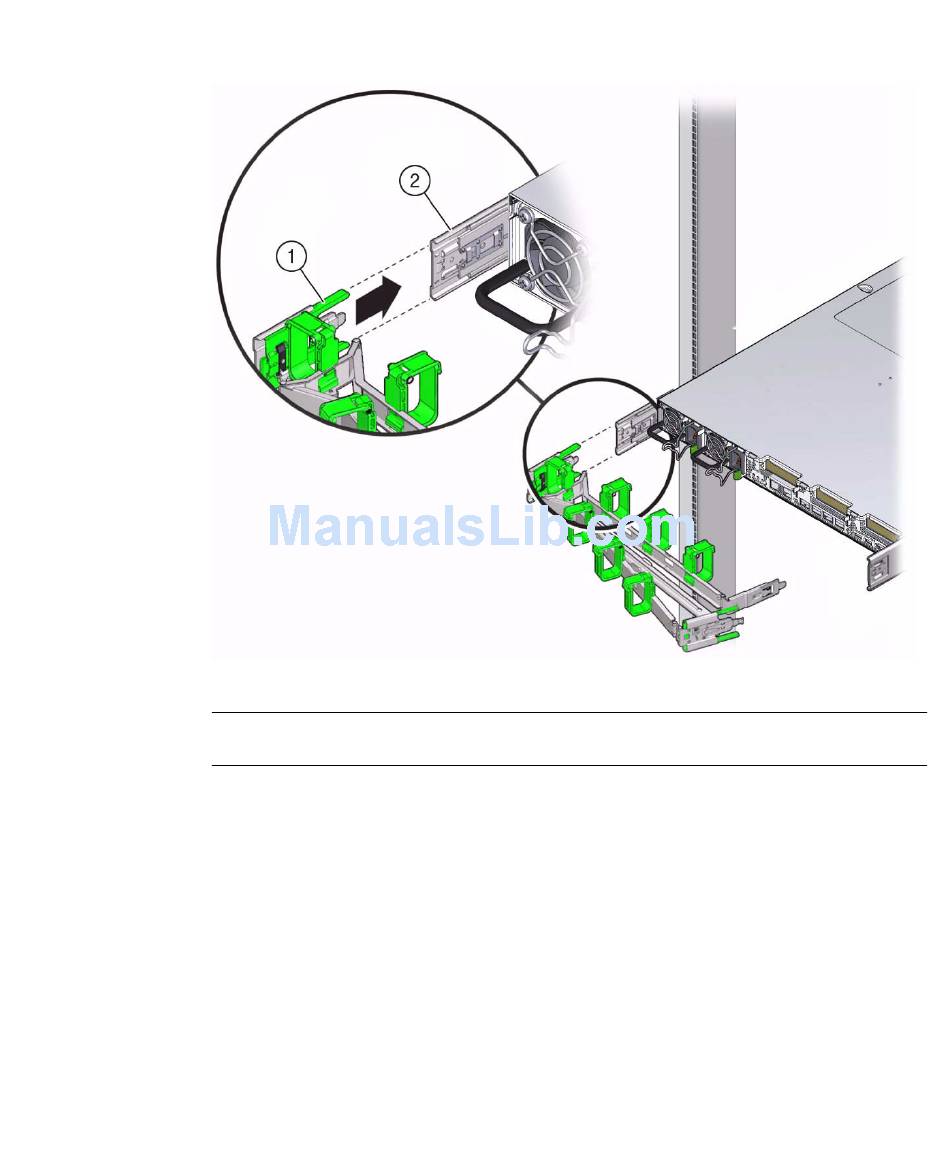

Inserting the CMA Slide-Rail Connector Into the Left Slide-Rail
FIGURE:
Figure Legend
1 CMA slide-rail connector
2 Left slide-rail
7. Install and route cables to your server, as required.
Instructions for installing the server cables are provided in
on page 75.
8. If required, attach the cable hooks and loop straps to the CMA, and press them
into place to secure the cables.
Cable hooks and loops are preinstalled on the CMA. Perform this step if you need
to reinstall cable hooks and straps on the CMA.
For best results, place three cable straps, evenly spaced, on the rear-facing side of
the CMA and three cable straps on the side of the CMA nearest the server.
"Cabling the Server"
Installing the Server Into a Rack 71
