Sun Microsystems Server X4-2 Installation Manual page 37

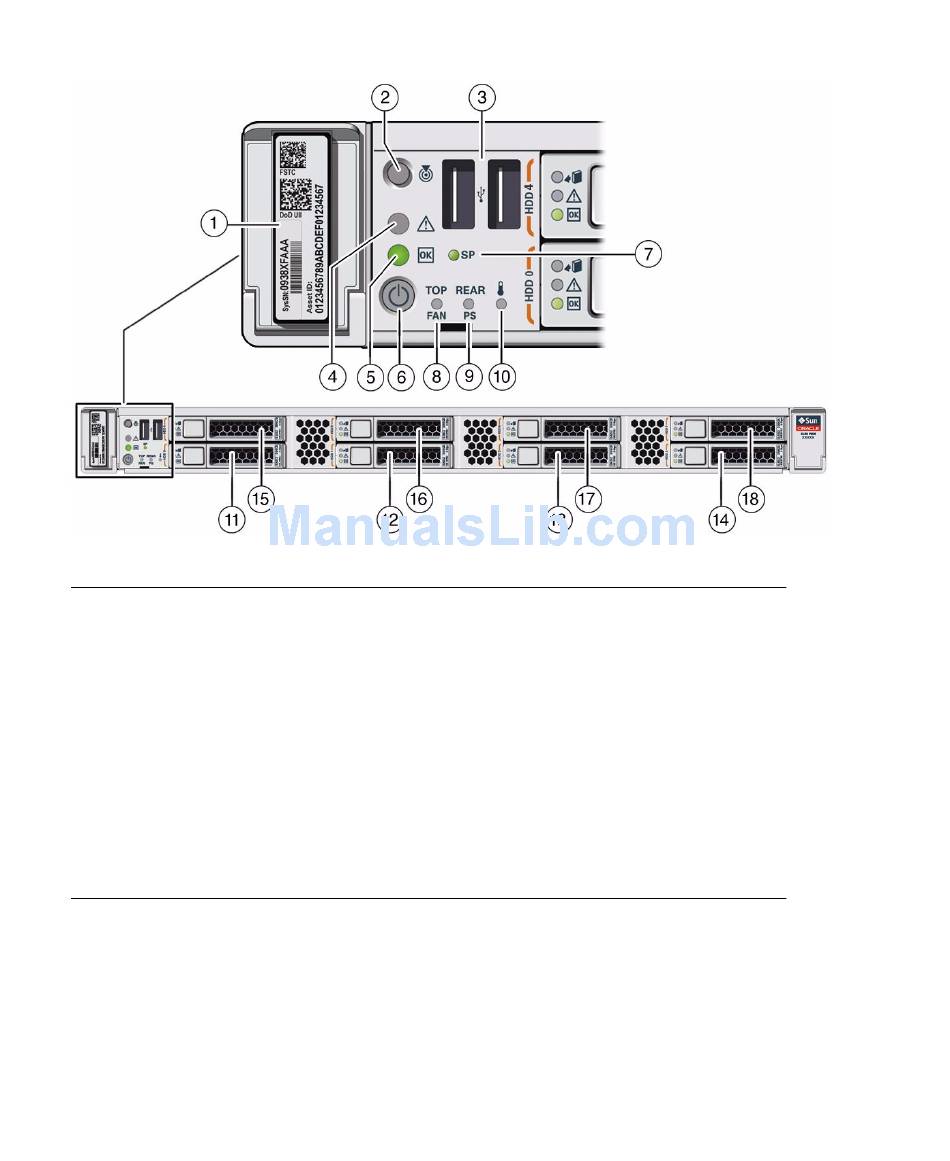

Server Front Panel With Eight 2.5-inch Drives Configuration
FIGURE:
Figure Legend
1 Product Serial Number (PSN) label and
Radio Frequency Identification (RFID) tag
2 Locate LED/button: white
3 USB 2.0 connectors (2)
4 Service Required LED: amber
5 Power/OK LED: green
6 Power button
7 SP OK LED: green
8 Fan Fault LED: amber
9 Power Supply (PS) Fault LED: amber
Related Information
"Front Panel With Four 2.5-inch Drives and SATA DVD Drive" on page 24
■
"Back Panel Status Indicators, Connectors, and PCIe Slots" on page 25
■
10 System Over Temperature Warning LED:
amber
11 Storage drive 0
12 Storage drive 1
13 Storage drive 2
14 Storage drive 3
15 Storage drive 4
16 Storage drive 5
17 Storage drive 6
18 Storage drive 7 (In Oracle Engineered
Systems, storage drive 7 might be populated
with a remote battery module for the HBA
card.)
About Server Features and Components 23
