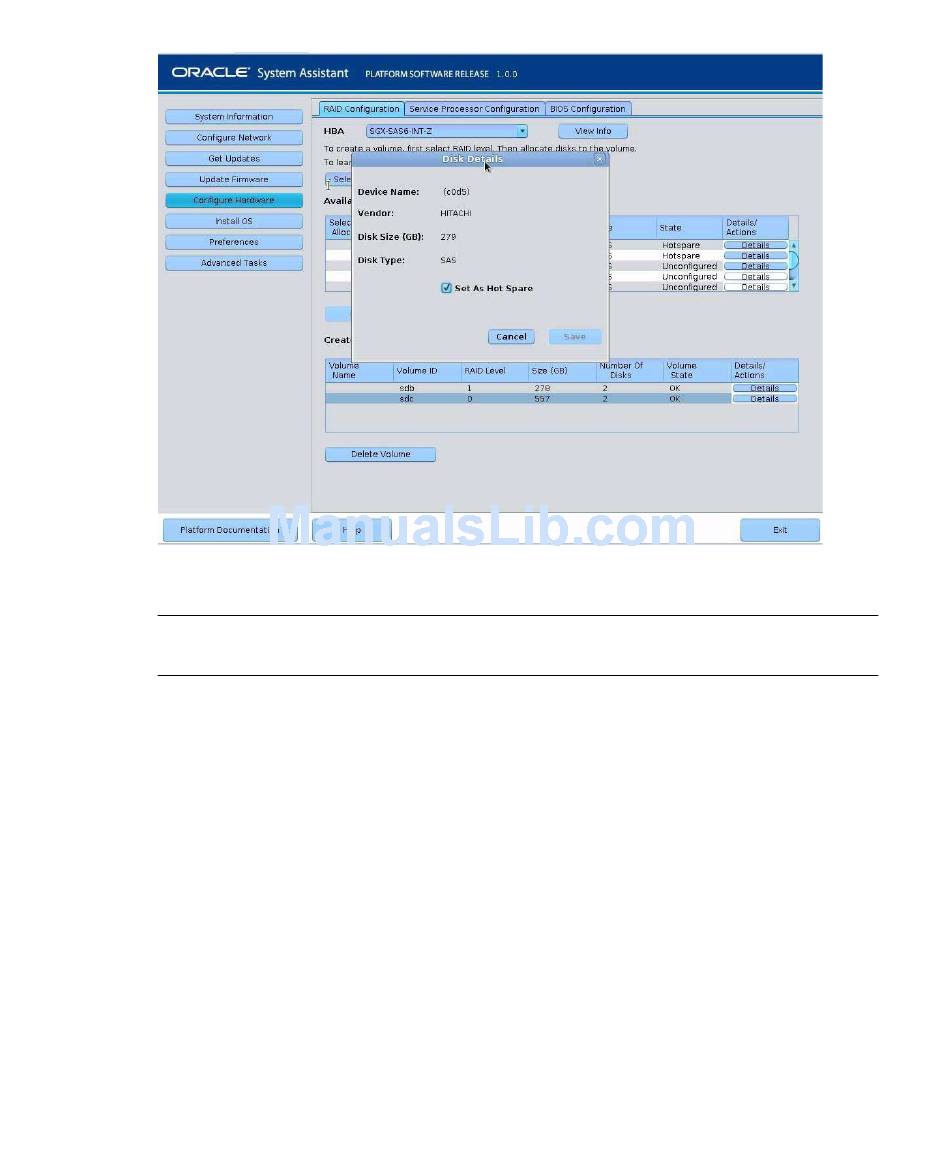

b. Check the Set as Hot Spare box.
Note – With the Sun Storage 6 Gb SAS PCIe Internal HBA, you can create a
maximum of two hot spares.
c. Click Save.
11. If you want to delete a volume, select it and click the Delete Volume button.
This completes the RAID configuration task.
12. Do one of the following:
■
■
■
120 Sun Server X4-2 Installation Guide • February 2014
The Disk Details dialog box closes.
To select any other Oracle System Assistant task, click the corresponding button
in the left panel menu. For example, after configuring RAID, you might want to
select the Install OS task and perform an operating system installation.
To return to the Oracle System Assistant System Overview screen, click System
Information in the left menu panel.
To quit Oracle System Assistant, click Exit.
