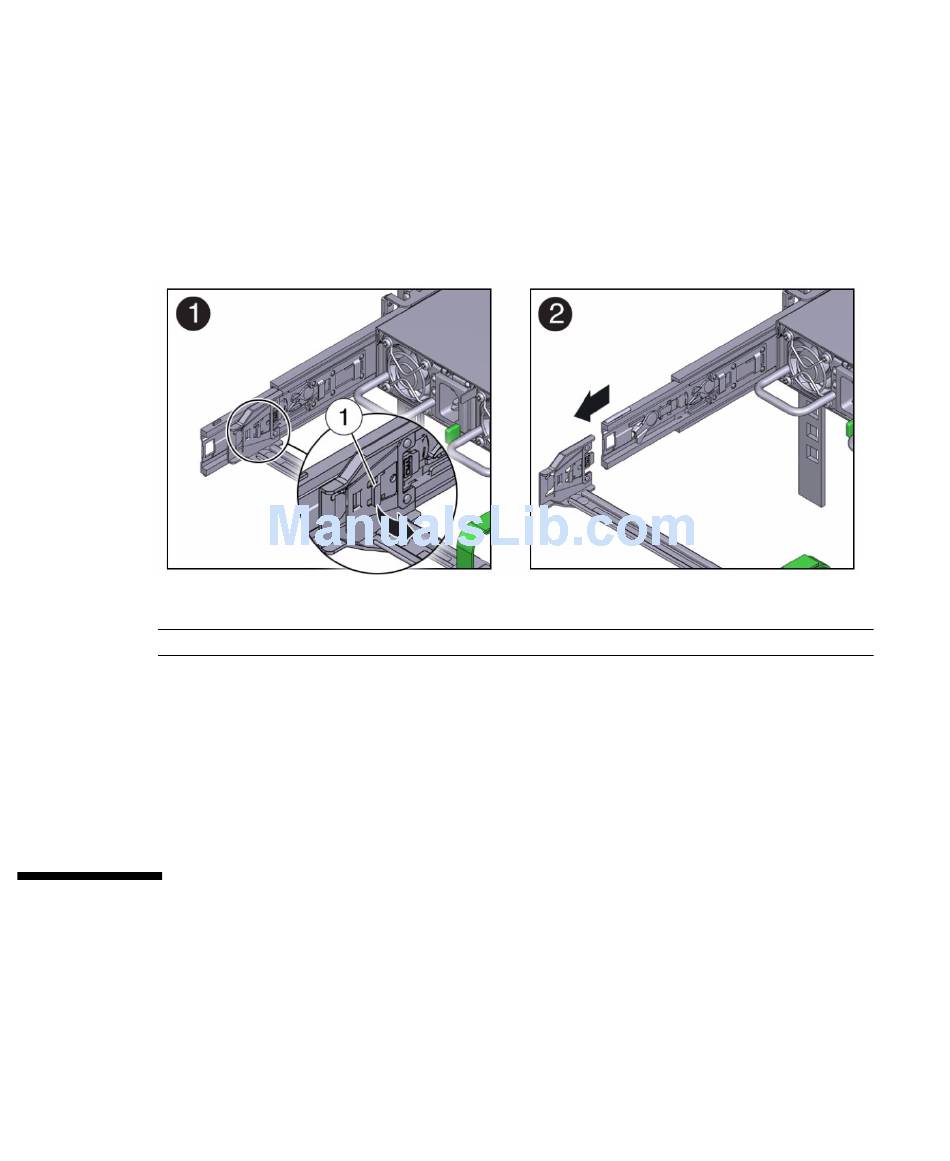

7. To disconnect connector A:
a. Place your left arm under the CMA to support it and grasp the rear end of
b. Use your right thumb to pull the connector A release lever to the right away
FIGURE:
Figure Legend
1
8. Remove the CMA from the rack and place it on a flat surface.
9. Go to the front of the server and push it back into the rack.
Related Information
"Install the Second-Generation Cable Management Arm" on page 52
■
▼ Install the First-Generation Cable
Management Arm
Use this procedure to install the cable management arm (CMA), which you can use
to route the server cables in the rack.
68 Sun Server X4-2 Installation Guide • February 2014
connector A with your left hand.
from the left slide-rail (callout 1), and use your left hand to pull the
connector out of the slide-rail [frames 1 and 2].
Disconnecting Connector A
Connector A release lever
