FIGURE:
Figure Legend
1
2
8. To install the CMA's connector B into the right slide-rail:
a. Insert the CMA's connector B into the front slot on the right slide-rail until it
b. Gently tug on the right side of the front slide bar to verify that connector B is
56 Sun Server X4-2 Installation Guide • February 2014
Installing Connector A Into the Left Slide-Rail
Connector A tab
Left slide-rail front slot
locks into place with an audible click [frames 1 and 2].

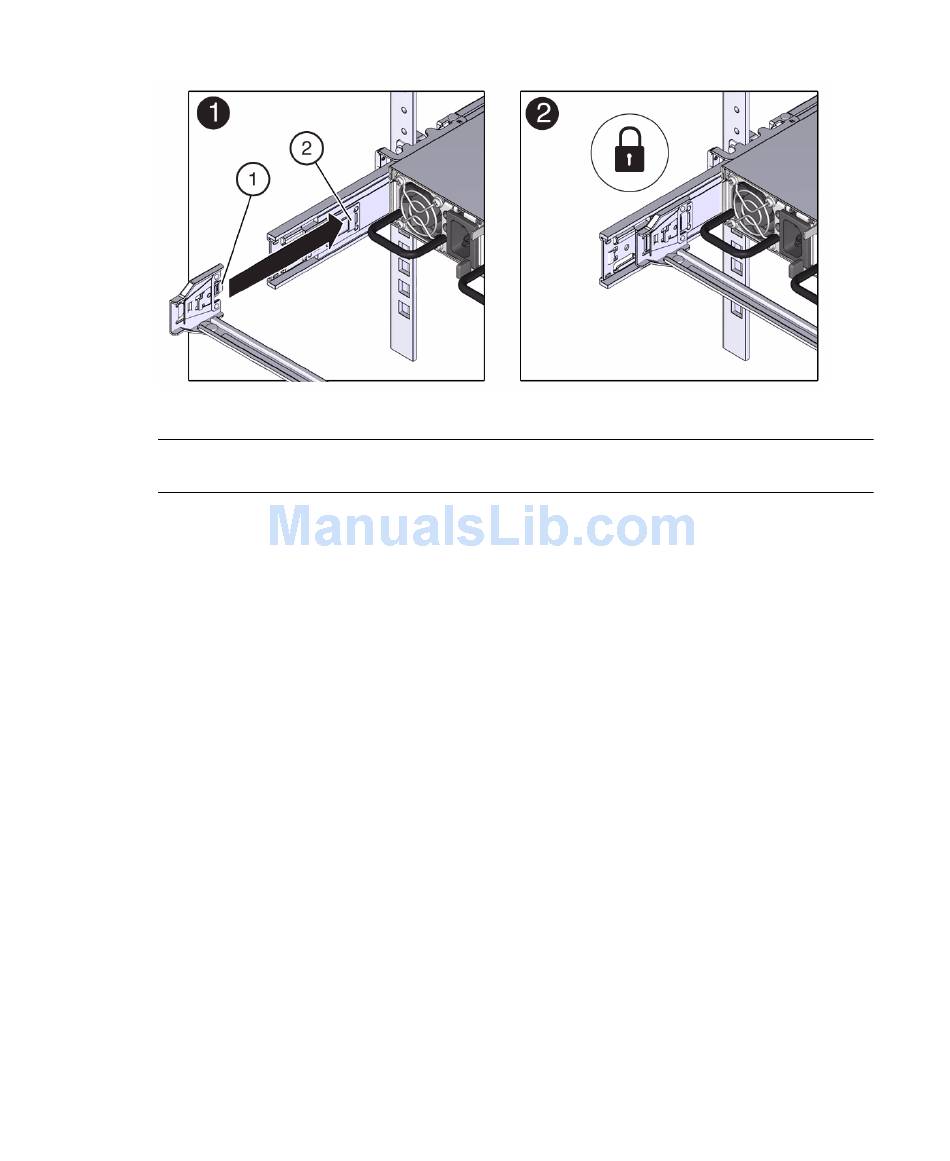

The connector B tab (callout 1) goes into the slide-rail front slot (callout 2).
properly seated.
