b. Insert connector C into the right slide-rail until it locks into place with an
c. Gently tug on the right side of the CMA's rear slide bar to verify that
10. To prepare the CMA's connector D for installation, remove the tape that secures
the slide-rail latching bracket to connector D and ensure that the latching
bracket is properly aligned with connector D [frames 1 and 2].
Note – The CMA is shipped with the slide-rail latching bracket taped to connector
D. You must remove the tape before you install this connector.
58 Sun Server X4-2 Installation Guide • February 2014

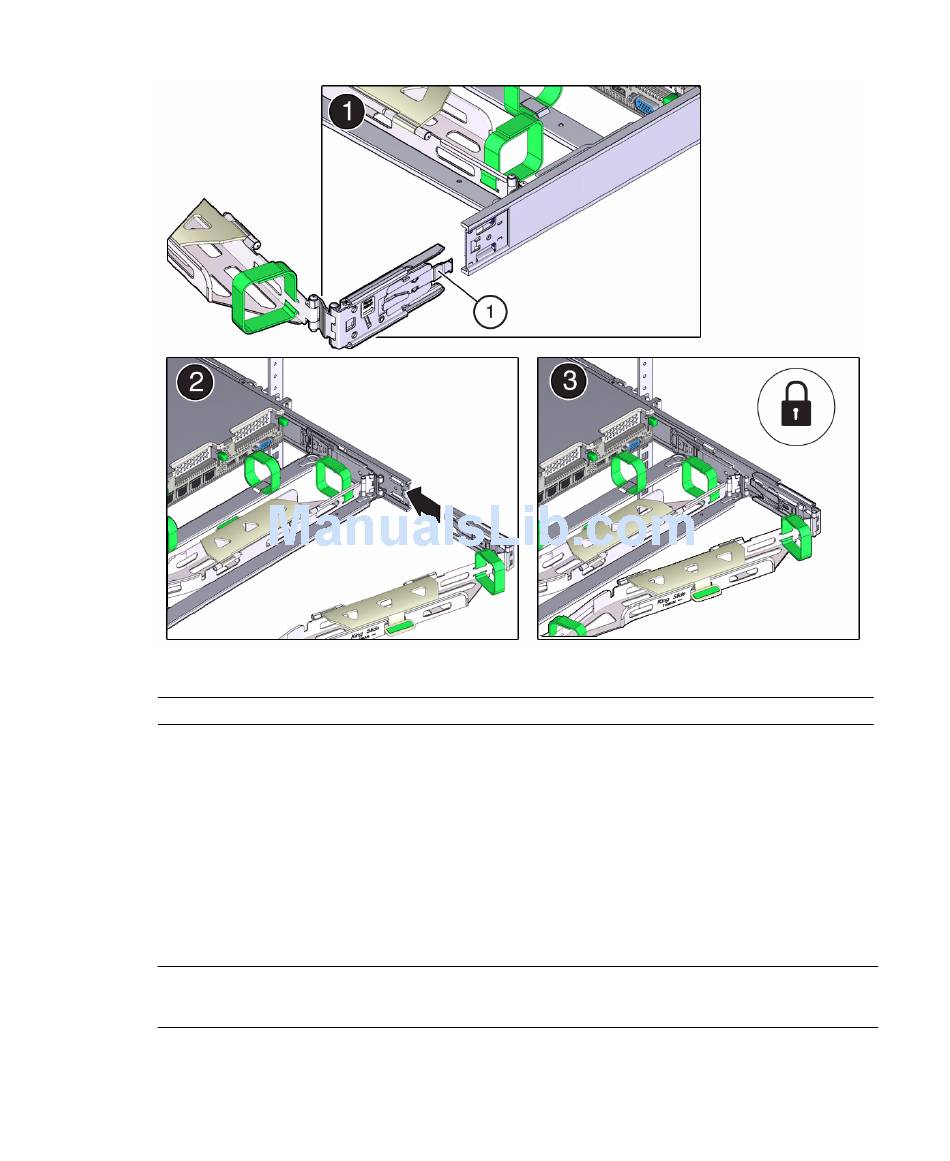

Installing Connector C Into the Right Slide-Rail
Connector C locking spring
audible click [frames 2 and 3].
connector C is properly seated.
