▼ Mark the Rackmount Location

Use the rackmount installation card to identify the correct mounting holes for the
slide-rails.
Note – Load the rack from bottom to top.
1. Ensure that there is at least 1 rack unit (1U) of vertical space in the rack cabinet
to install the server.
See
2. Place the rackmount installation card against the front rails.
The bottom edge of the card corresponds to the bottom edge of the server.
Measure up from the bottom of the installation card.

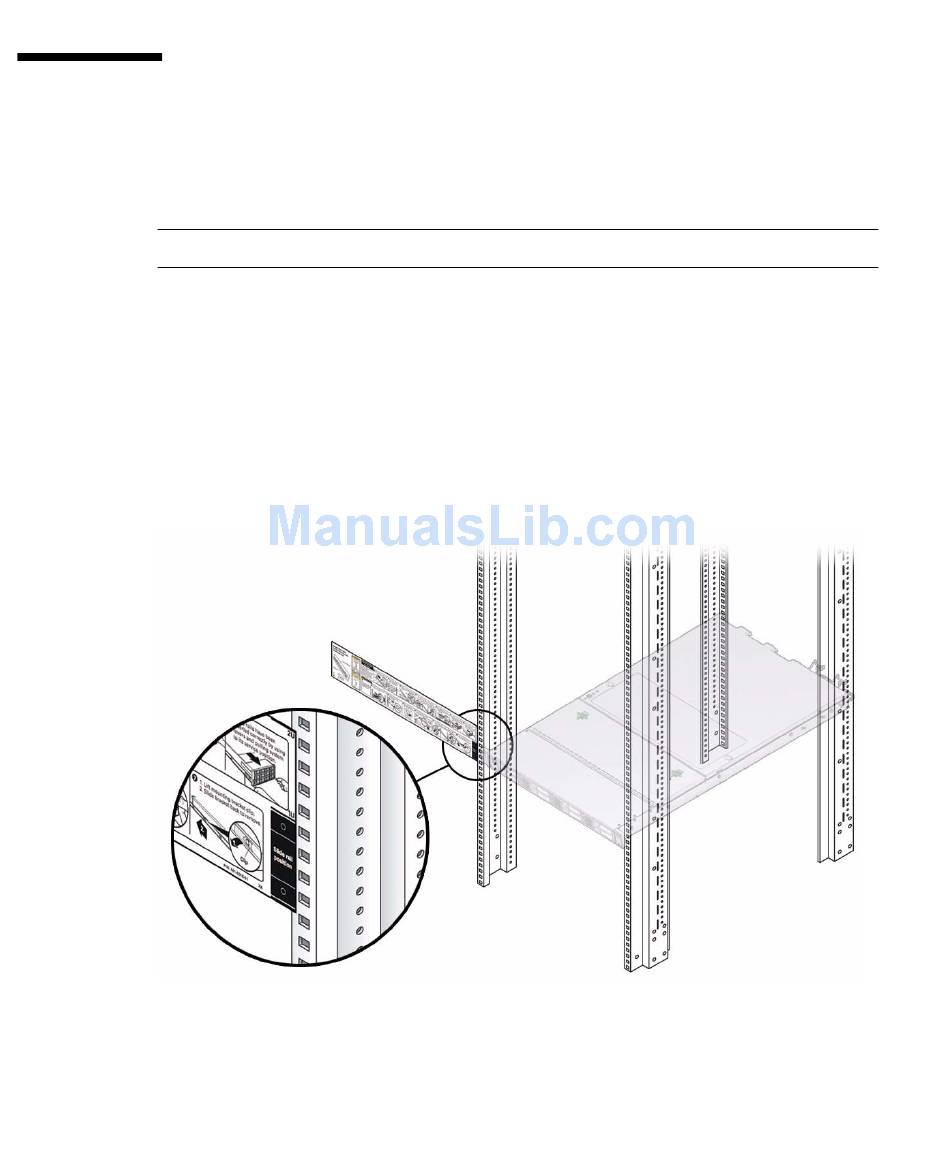

FIGURE:
3. Mark the mounting holes for the front slide-rails.
4. Mark the mounting holes for the rear slide-rails.
46 Sun Server X4-2 Installation Guide • February 2014
"Rack Requirements" on page
Rackmount Installation Card Template
40.
