Sun Microsystems Server X4-2 Installation Manual page 63

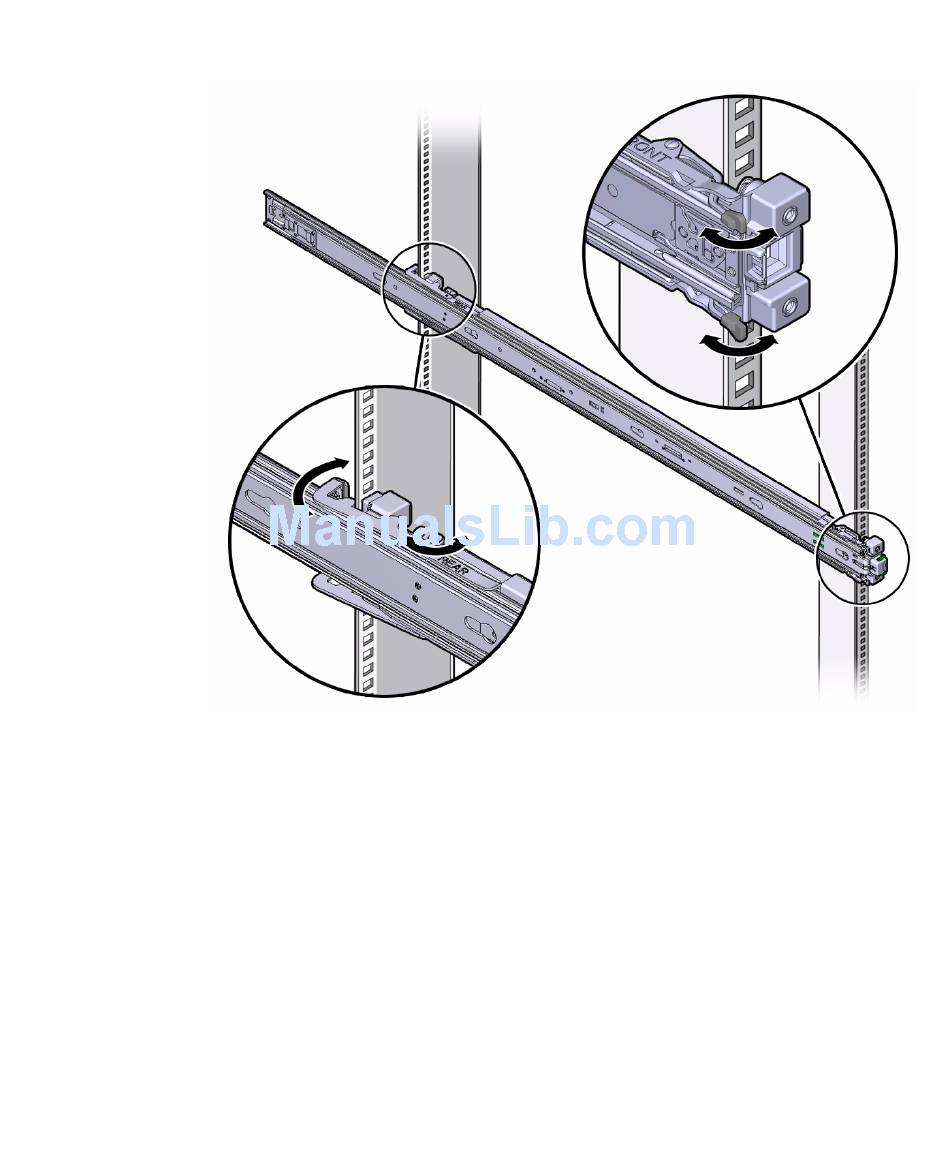

Aligning the Slide-Rail Assembly With the Rack
FIGURE:
3. Align the front of the slide-rail assembly against the outside of the front rack
rail, and push until the assembly locks into place with an audible click.
4. Repeat Step 1 through
the rack.
Related Information
"Install Mounting Brackets" on page 44
■
"Mark the Rackmount Location" on page 46
■
"Install the Server Into the Slide-Rail Assemblies" on page 50
■
Step 3 to attach the slide-rail assembly to the other side of
Installing the Server Into a Rack 49
