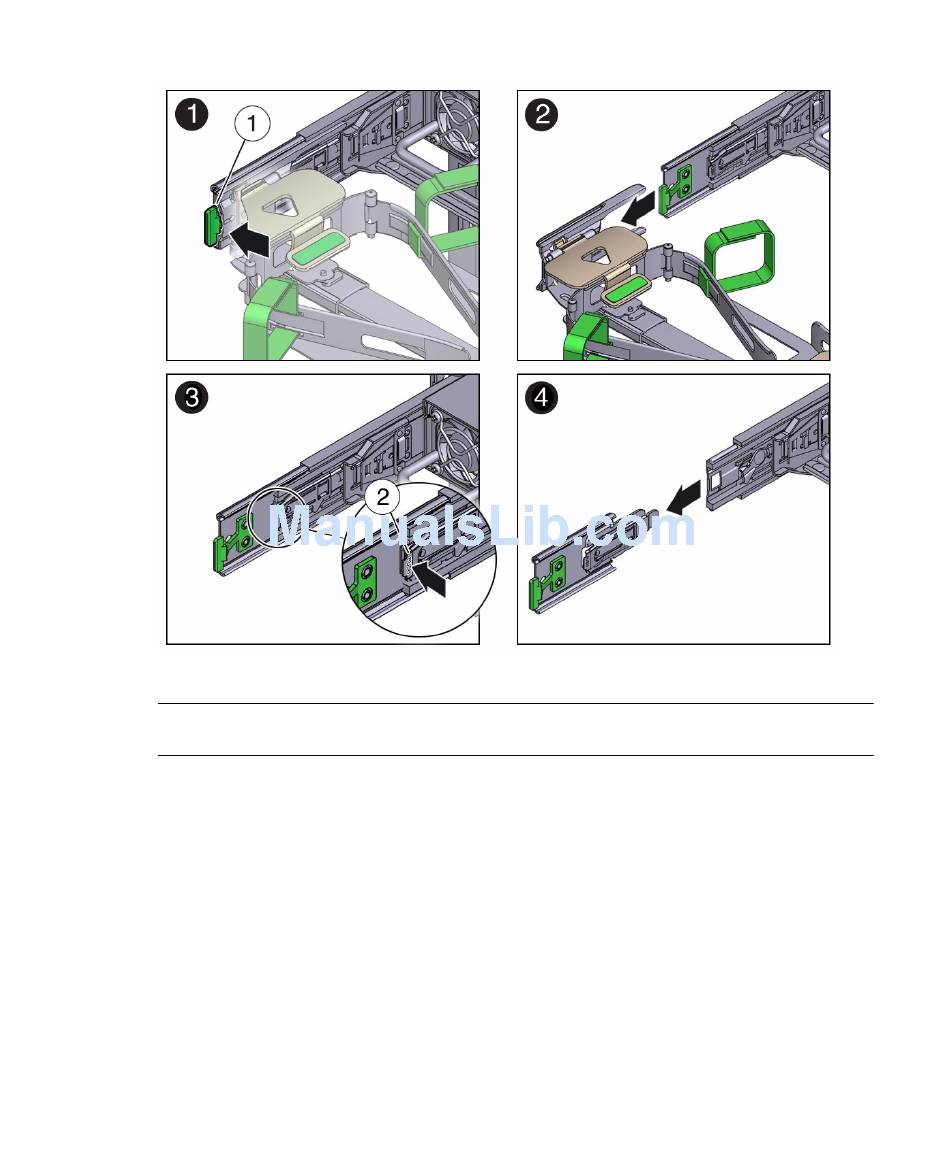

FIGURE:
Figure Legend
1
2
b. Use your right hand to support the CMA and use your left thumb to push in
5. To disconnect connector C:
a. Place your left arm under the CMA to support it.
b. Use your right thumb to push in (toward the right) on the connector C release
66 Sun Server X4-2 Installation Guide • February 2014
Disconnecting Connector D
Connector D release tab (green)
Slide-rail latching bracket release tab (labeled PUSH)
(toward the left) on the connector D latching bracket release tab labeled
PUSH (callout 2), and pull the latching bracket out of the left slide-rail and
put it aside [frames 3 and 4].
tab labeled PUSH (callout 1), and pull connector C out of the right slide-rail
[frame 1 and 2].
