14 C 2: I
HAPTER NSTALLATION
NMS Console

Site Requirements

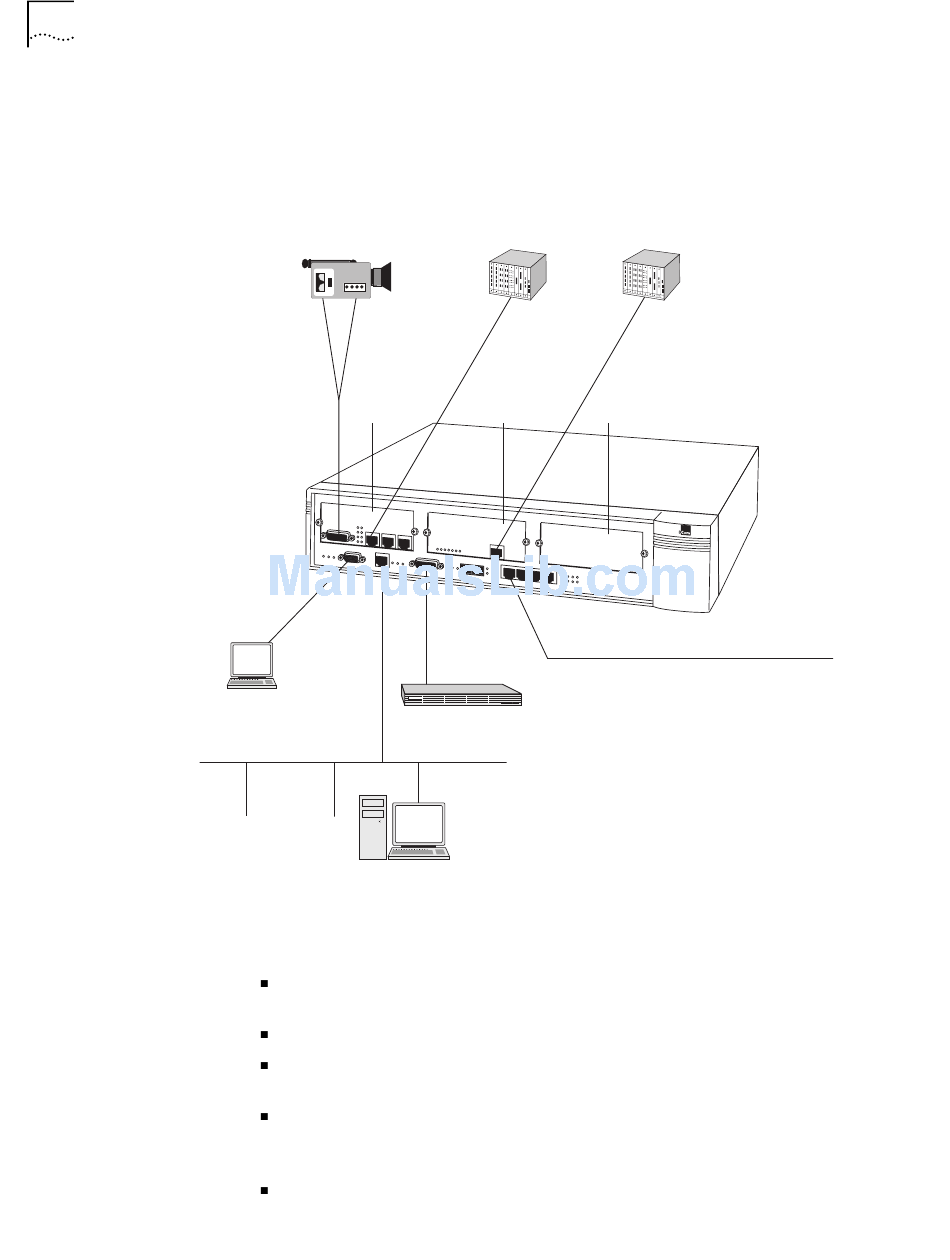

Figure 5 is an example of a PathBuilder S310 switch with all of the associated
cabling connected.
Figure 5 PathBuilder S310 Full System Configuration
Video/Audio
Codec
V.35/
RS-366
RS-449/
RS-530/
X.21
Slot 7
RS-232
10BASE-T
LAN
The operating site for the PathBuilder S330/S310 switch must meet the following
requirements:
Be within the maximum distances to the port and trunk connections, as well as
the NMS terminal
Have interconnect cabling and wiring ready and labeled
Have a dedicated source of switched and fused AC power or a primary DC
source
Be within the operating environment for the PathBuilder S330/S310 switch, as
specified under "PathBuilder S330 Specifications" and "PathBuilder S310
Specifications" in Appendix A.
Provide clearance for making all connections and performing maintenance
PBX
T1-DSX/E1
Slot 8 Slot 9
V.35/
RS-449/
RS-530/
X.21
Router
PBX
T1-DSX/E1
T1/E1
