112
C
4: C
HAPTER
ONFIGURING
P
B
S330/S310 M
ATH
UILDER
ODULES

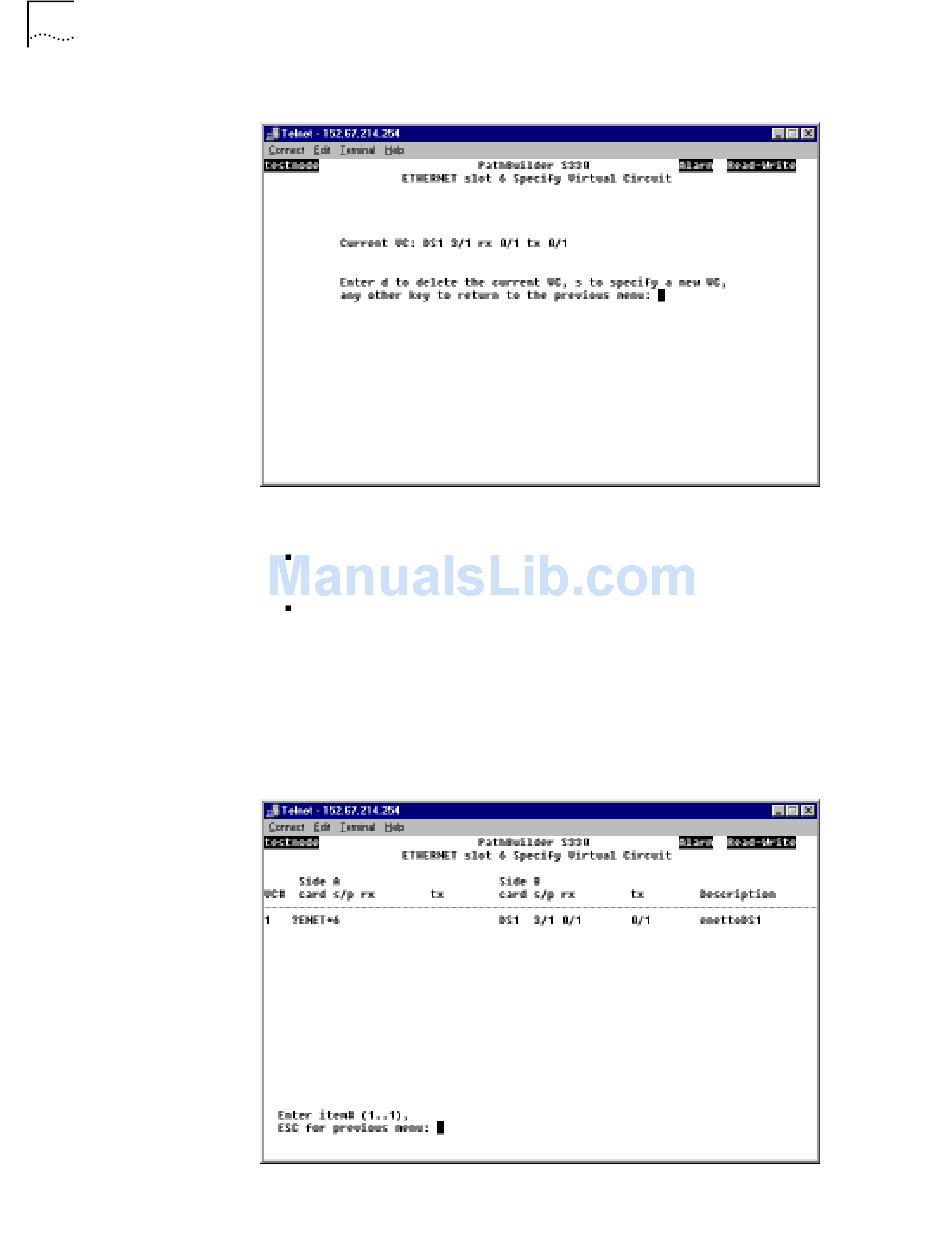

Figure 104 Specify Virtual Circuit Menu
b Accept or delete the current virtual circuit (the one displayed on the Specify
Virtual Circuit menu).
If you want to use the current virtual circuit, press any key other than
to return to the previous menu and skip to step 5.
If you want to specify a new virtual circuit, press
virtual circuit and continue to step 4.
4 Specify a new virtual circuit to pass the IP traffic over the ATM network (if desired).
a From the Specify Virtual Circuit menu, shown earlier in Figure 104, press
display a screen similar to the one shown in Figure 105. This screen lists the
existing virtual circuits connected to the selected Ethernet port.
Figure 105 Specify Virtual Circuit Selection Screen
b Enter the number corresponding to the virtual circuit you want to use to pass
the IP traffic over the ATM network. The circuit you select will now be listed on
the Specify Virtual Circuit menu.
, P
,
A
ORTS
AND
PPLICATIONS
or
s
to delete the current
d
to
s
d
