3 Enter the following information (by selecting the appropriate options and
responding to the prompts that appear at the bottom of the screen) to configure
the trap client:
IP Address — The IP address of the network management station to which you
want the PathBuilder S330/S310 switch to send traps.
Subnet Mask — The subnet mask for the network management station to which
you want the PathBuilder S330/S310 switch to send traps.
Port Number — The system-defined port number. You should not modify this
number. (SNMP/UDP).
4 Select [4] Previous Menu to return to the Trap Client Configuration menu.
5 Select [5] Previous Menu to return to the Manage IP Network Configuration
menu.
Configuring the Default Gateway
The default gateway routes IP data to non-local networks (Telnet sessions from
different subnetworks). To configure the default gateway:
1 From the Manage IP Network Configuration menu, select [3] Default Gateway
Configuration to open the Default Gateway Configuration menu, shown in
Figure 50.

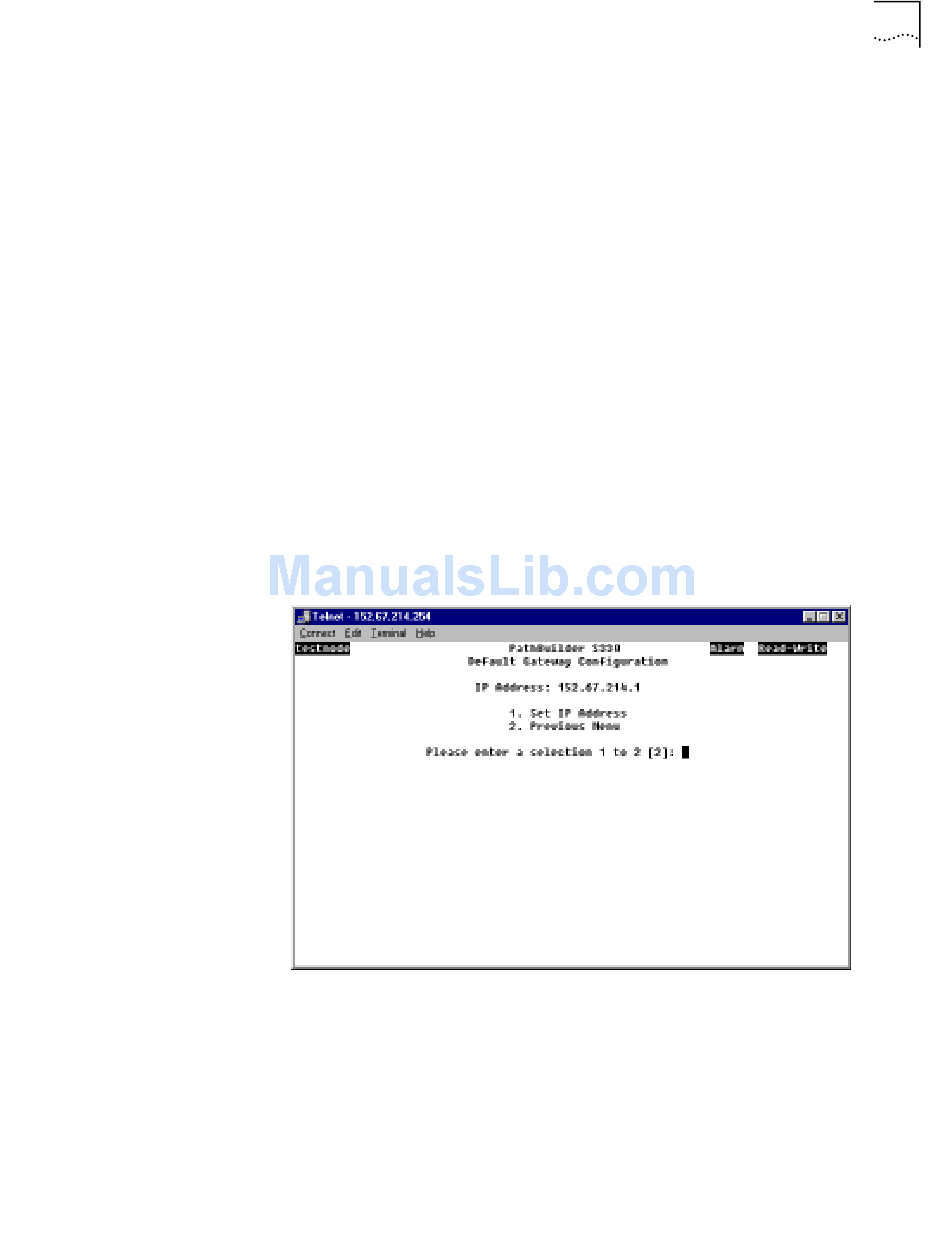

Figure 50 Default Gateway Configuration Menu
2 Select [1] Set IP Address. The system prompts you to enter an IP address.
3 Enter the IP address of the router which you want to configure as the default
gateway.
4 Select [2] Previous Menu to return to the Manage IP Network Configuration
menu.
5 Select [4] Previous Menu to return to the System Administration menu.
Performing Initial System Configuration 53
