Viewing Existing Virtual
Circuits
P B S330/S310 M
ATH UILDER ODULES
You can view summaries of existing virtual circuits for the entire chassis or by port
or group.

Viewing Virtual Circuits for the Entire Chassis

To view a summary of existing virtual circuits for the entire chassis:
1 From the Virtual Circuit menu, select [1] List Virtual Circuits to open the List Virtual
Circuit Summary screen, shown in Figure 140.
The List Virtual Circuit summary screen, shown in Figure 140, appears. This screen
shows a summary of all virtual circuits, with a virtual circuit number (VC#) assigned
to each.

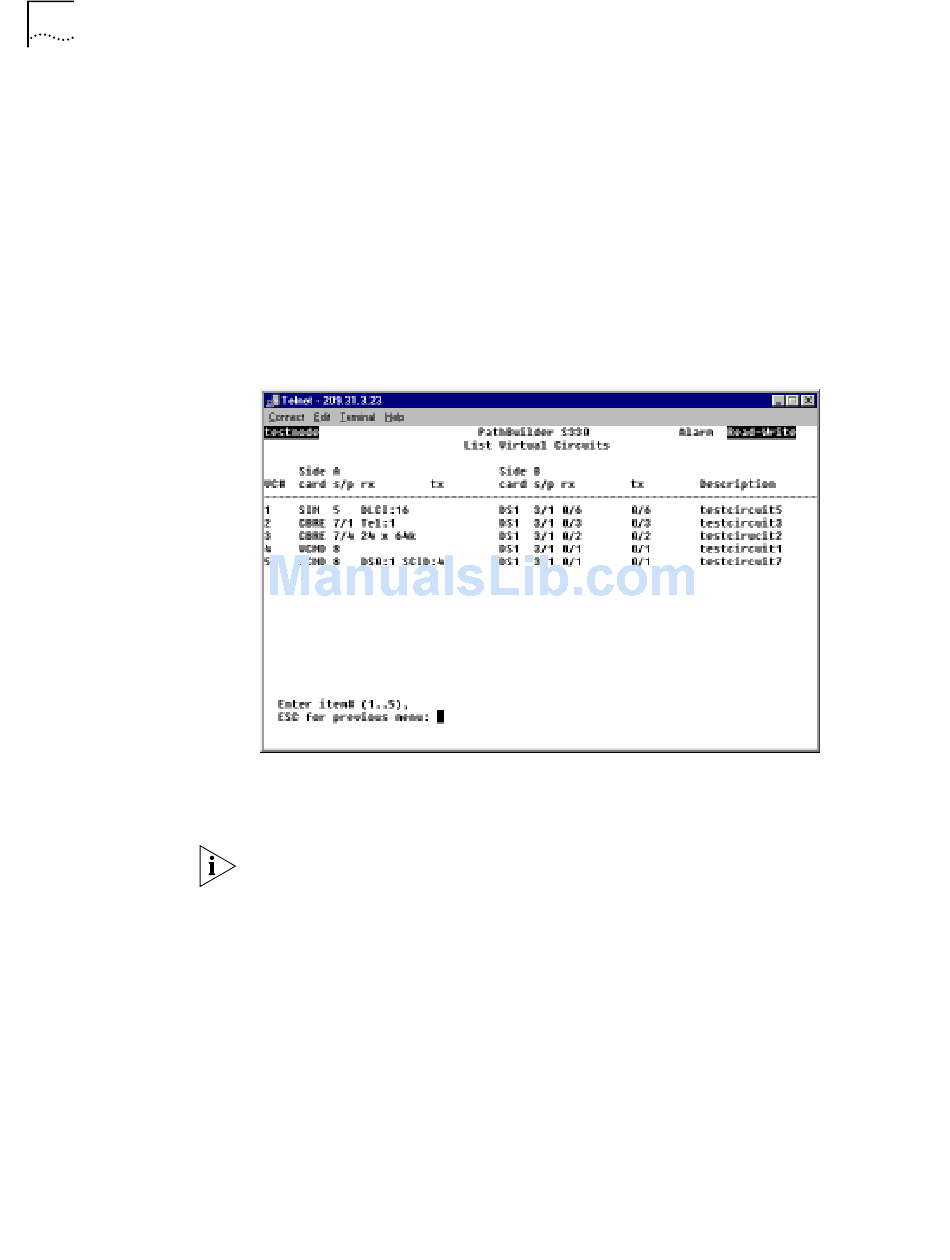

Figure 140 List Virtual Circuit Summary Screen
The List Virtual Circuit Summary Screen shows a summary of all virtual circuits,
with a virtual circuit number (VC#) assigned to each. It displays the following
information:
A question mark appears to the left of the card name if the virtual circuit is not
operational.
Card — Card type.
S/p — Slot and port numbers (for side A and side B of the circuit)
Rx/Tx — Virtual circuit information specific to the card type. For example, for UNI
cards, these columns list the receive/transmit VPI/VCI (for side A and side B of the
circuit), while for CBR cards these columns list the DS0 channels.
Description — The description entered when the circuit was configured.
2 To view more detailed information about a specific virtual circuit enter the VC# of
the circuit you want to view from the List Virtual Circuit Summary screen to open
the List Virtual Circuit Detail screen. This screen displays the complete list of
parameters for both sides of the selected circuit.
