Configuring The T1/E1 Interface - 3Com SuperStack II PathBuilder S330 Reference Manual

Configuring the T1/E1
Interface
Configuring the T1/E1
Ports
Configuring the T1/E1 interface involves the following tasks:
Configuring the individual T1/E1 ports
Setting up and configuring UNI and/or IMA groups (if desired)
Viewing IMA link and group status
Configuring the T1/E1 card
The PathBuilder S310 switch has only one T1/E1 port and does not support IMA
groups.
To configure the individual T1/E1 ports:
1 From the Configuration Management menu, select [1] Manage Card to open the
List Card menu, shown earlier in Figure 63.
2 From the List Card menu, select [3] DS1 UNI to open the T1 (DS1) UNI or E1 UNI
Configuration menu. Figure 67 shows the T1 (DS1) UNI Configuration menu. The
E1 UNI Configuration menu is the same.

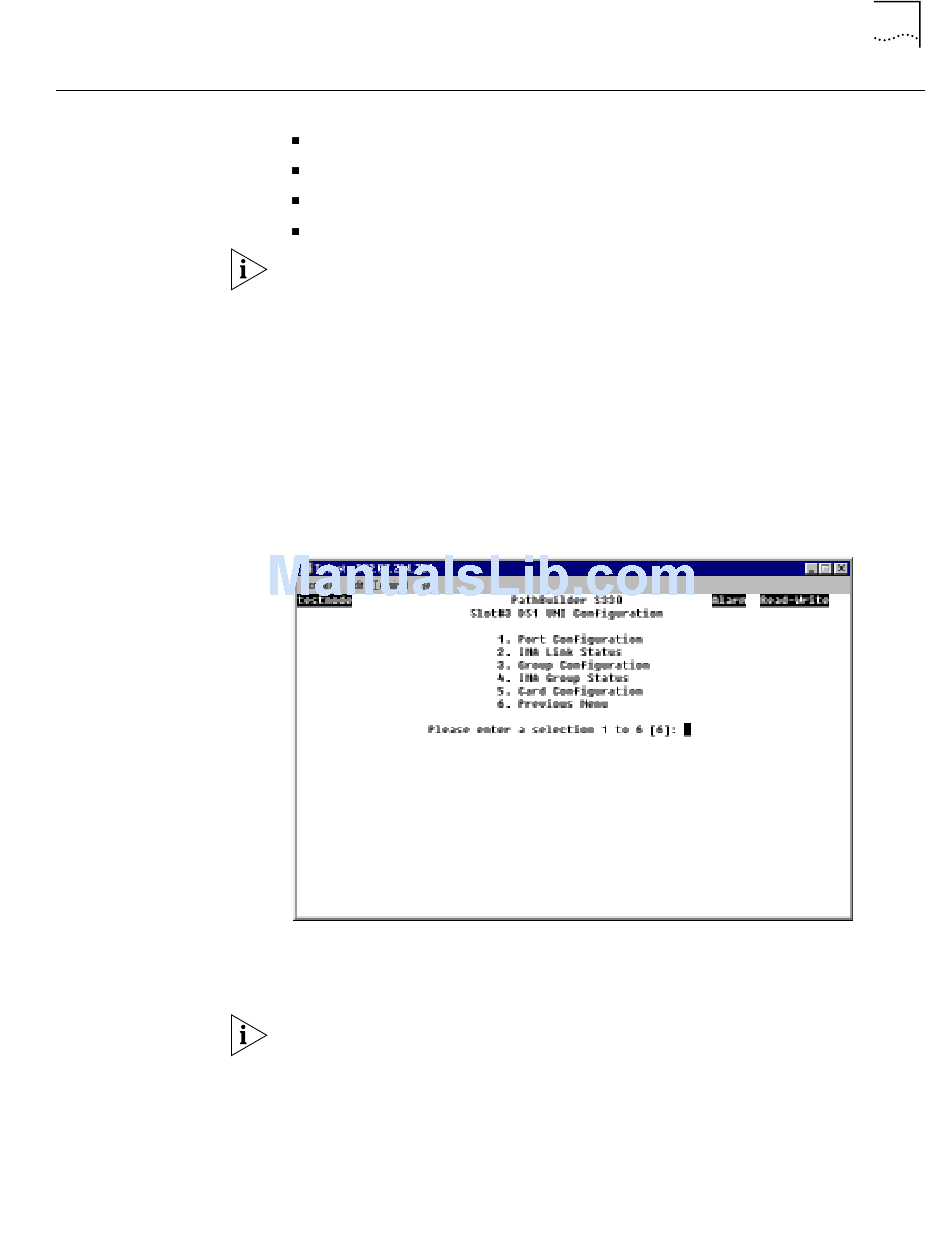

Figure 67 T1 (DS1) UNI Configuration Menu
3 Select [1] Port Configuration to open the T1 (DS1)/E1 UNI Port Configuration
Selection menu. Figure 68 shows the T1 (DS1) UNI Port Selection menu. The E1
UNI Port Configuration menu is the same.
If you have installed the four-port IMA expansion card, the T1/E1 Port Selection
menu lists eight T1 or E1 ports to select for configuration.
Configuring the T1/E1 Interface 77
