134 C 4: C
HAPTER ONFIGURING
P B S330/S310 M
ATH UILDER ODULES

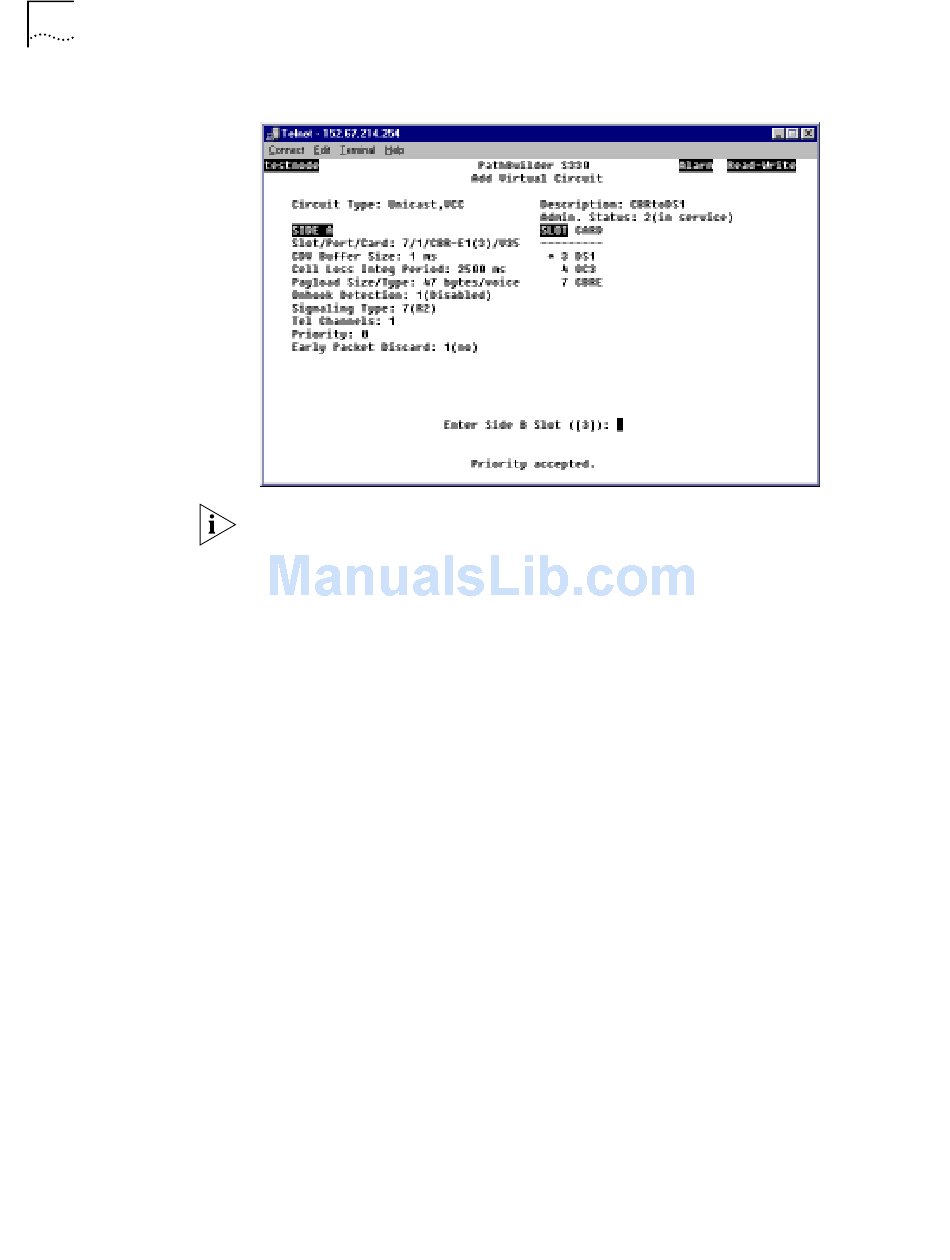

Figure 125 Add Virtual Circuit Screen with Side A Completed
Some parameters that appear on the Add Virtual Circuit screen may not apply to
the particular circuit you are configuring. The system skips any non-applicable
parameters and does not allow you to set them. In addition, certain parameters
may be displayed for information only; you cannot change these read-only values.
6 Select the slot number corresponding to the module by which you are connected
to the network for side B of the circuit.
7 Repeat steps 3 and 4 for side B of the circuit. After you enter the last parameter
for side B, the following prompt appears at the bottom of the screen:
Is the above information correct (y/n)?
8 Enter to confirm your configuration. Figure 126 shows a completed data port
y
VCC circuit. As shown in the figure, the following message appears at the bottom
of the screen:
VC has been added.
Press any key to continue.
, P , A
ORTS AND PPLICATIONS
