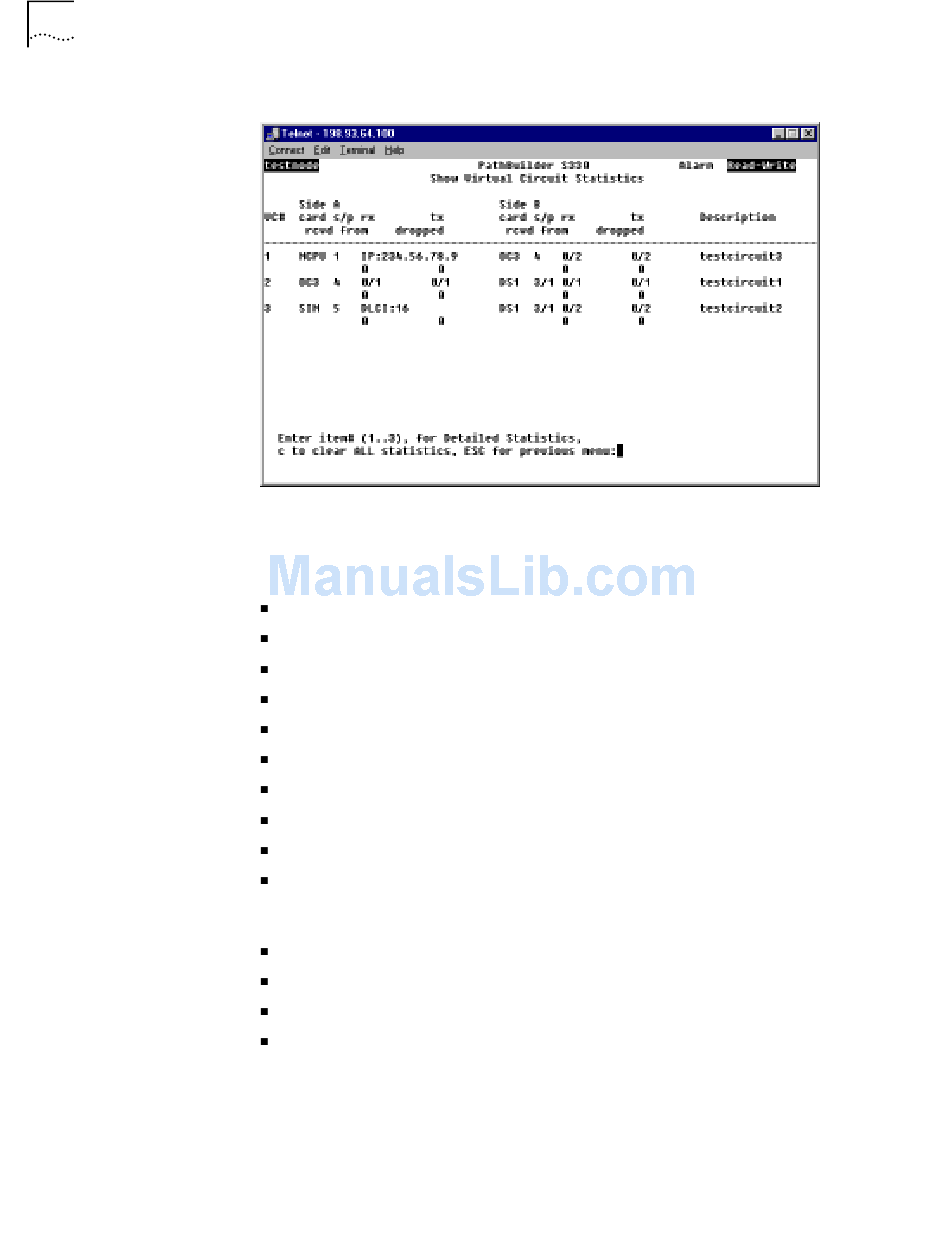

Figure 165 Virtual Circuit Statistics Summary Screen
Each pair of rows on the Virtual Circuit Statistics Summary screen provides the
following information about one of the existing virtual circuits:
Row 1 (left to right)
virtual circuit number
side A card type
side A slot and port numbers (IP address for the MCPU card)
side A receive VCI/VPI
side A transmit VCI/VPI
side B card type
side B slot and port numbers (IP address for the MCPU card)
side B receive VCI/VPI
side B transmit VCI/VPI
virtual circuit description
Row 2 (left to right)
cells received on side A
cells dropped on side A
cells received on side B
cells dropped on side B
To view additional information about a particular circuit, enter the desired virtual
circuit number. In addition to the information displayed on the summary screen,
the Virtual Circuit Statistics Detail screen displays the number of cells sent on each
side of the selected circuit.
