Step 2: Install the Unit in
the Rack
10 Replace the unit's cover.
a Slide the cover back into place so that the five tabs go under the lip of the front
panel (arrow 1) and push it down at the rear (arrow 2), as shown in Figure 18.

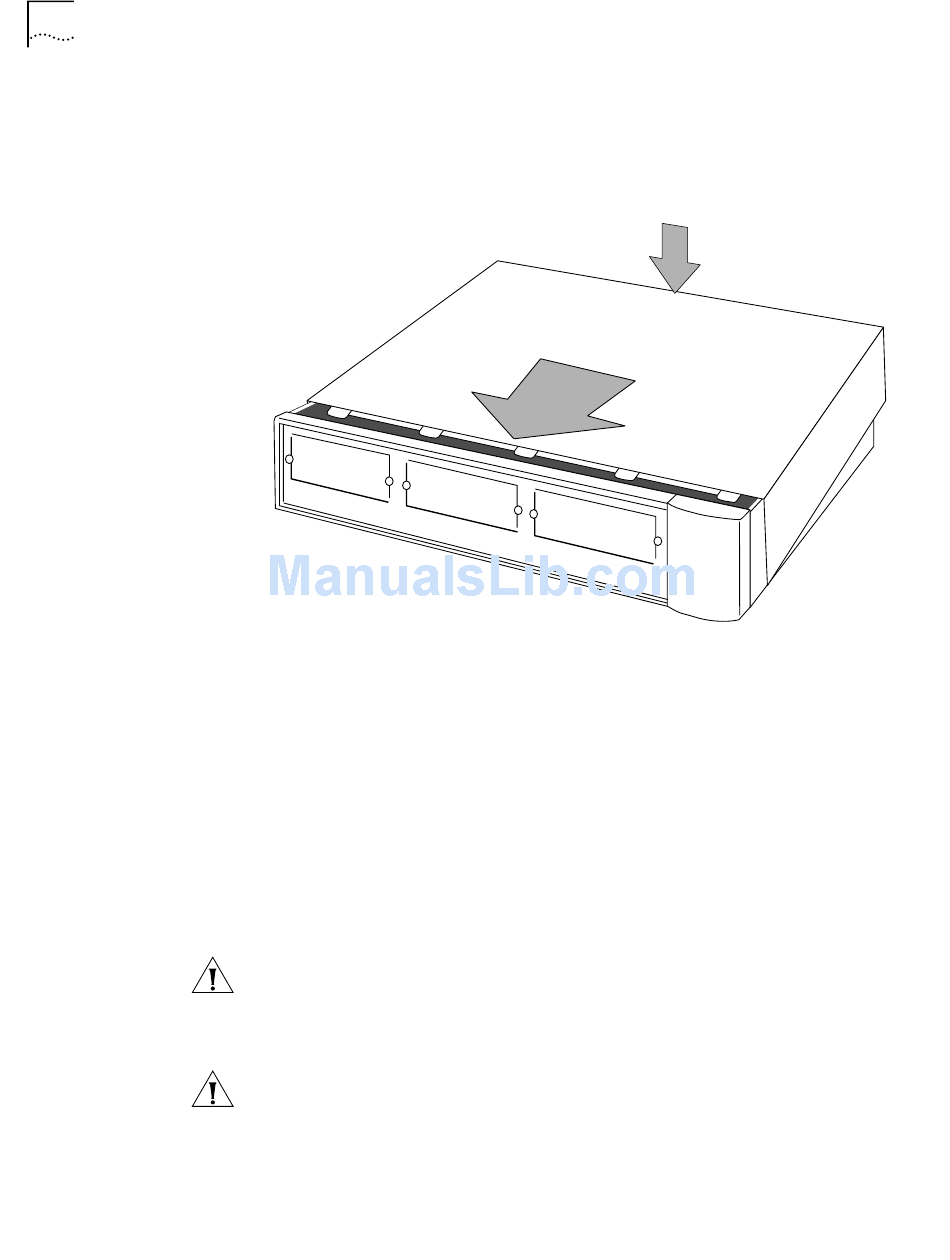

Figure 18 Replacing the PathBuilder S330/S310 Cover
b Secure the cover with the eight assembly screws you removed in step 1a.
In a normal rack mount configuration the PathBuilder S330/S310 switch is 3.5" x
17" x 15.5" including cables. Since the equipment is cooled with two internal
fans, clearance at the top is not needed; however, convection cooled equipment
must not be mounted directly under the shelf.Allow at least one rack unit
clearance below the unit. See Figure 19 for details. If the PathBuilder S330/S310
switch is mounted in an enclosure, plan on enough clearance at the front for cable
and wiring service loops.
To mount the shelf:
1 Attach the rack-mount ears to the unit, following the instructions supplied with
the ears.
CAUTION: When attaching the rack-mount ears, you must use the
factory-supplied screws. Using screws other than those supplied with the
rack-mount ears voids your warranty and could damage the PCB.
2 Adjust the rack-mount ears if necessary for 19" installation. See Figure 19.
CAUTION: Do not block the ventilation openings on the top and bottom of the
unit during installation. A minimum of 1 rack unit (1.75") space is required.
2
1
