3 Enter the number corresponding to the slot in which the Voice Compression
module is installed (
7
The Add Virtual Circuit screen displays the selected slot number and port type, lists
the parameters you will enter for side A of the circuit, and prompts you to set the
first parameter, as shown in Figure 131.
4 Follow the prompts that appear at the bottom of the screen, pressing [Enter] after
each entry. Default values are listed in square brackets ([ ]) at the end of each
prompt.
Your settings are added to list of parameters at the top of the screen as you enter
them. You must enter a setting for all the parameters for which you are prompted
in order to add a circuit. Press [Delete] to back up to a previous selection.
CAUTION: For voice compression circuits, select the Shaper Number
corresponding to the maximum shaper value (typically Shaper Number 15).

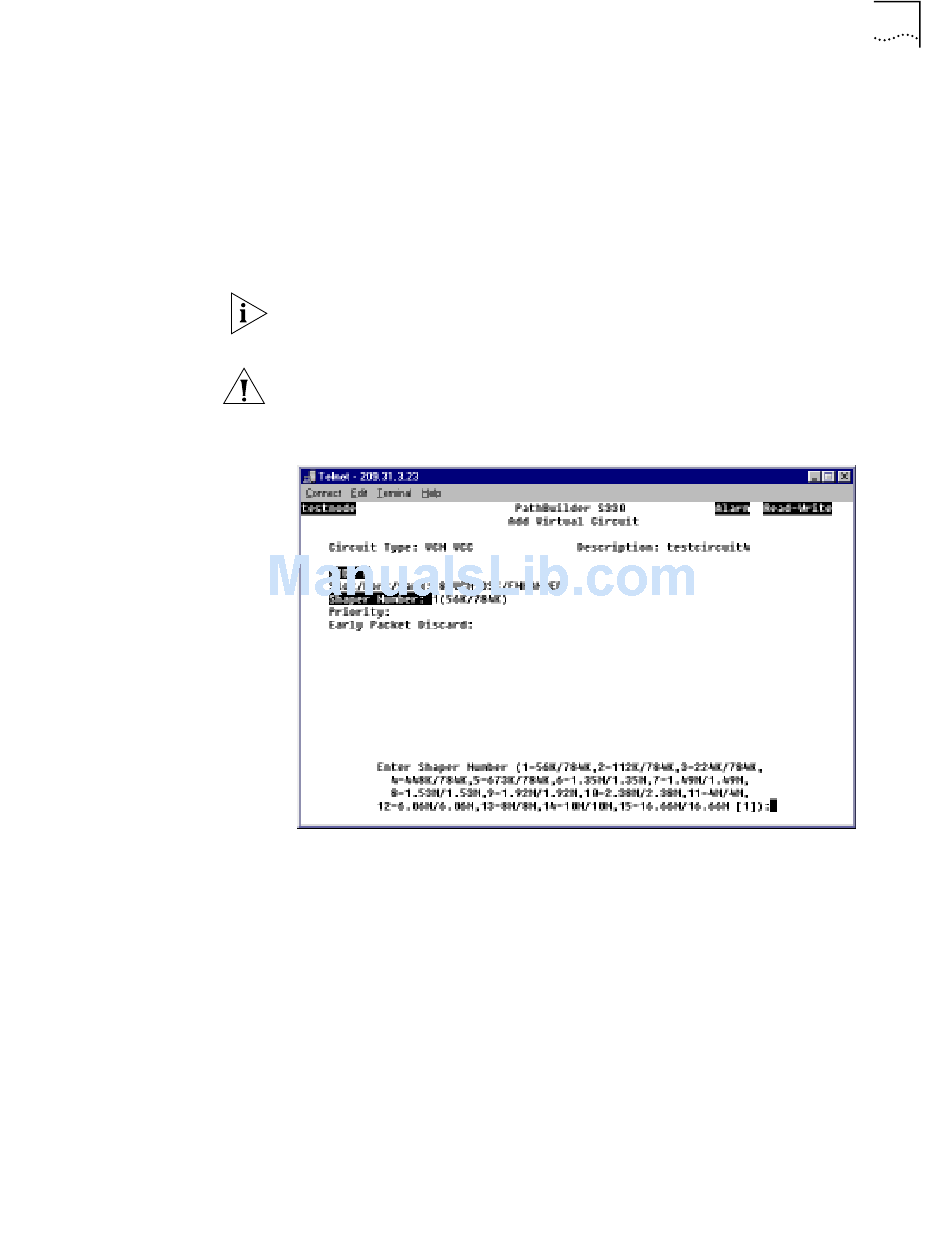

Figure 131 Configuring Side A of A VCM VCC Virtual Circuit
When you have entered a setting for each parameter, the Add Virtual Screen again
displays the list of PathBuilder S330/S310 modules and ports by slot number and
prompts you to enter a slot number for side B of the circuit, as shown in
Figure 132.
or
) to assign the VCM to side A of the circuit.
8
Configuring Virtual Circuits
141
