SuperStack
24-Port TP (3C16411) User Guide
DUA1641-0AAA01
I
NTRODUCTION
®

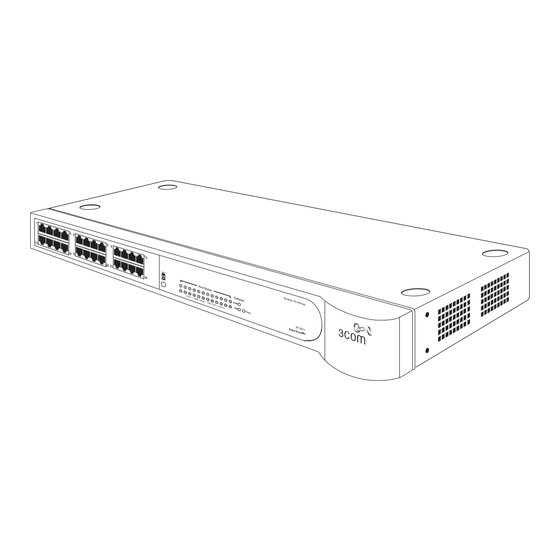

The SuperStack
3 Baseline Dual Speed Hub is an easy-to-use, 10/100
autosensing Class II hub (repeater). It is ideal for users who want to
connect both Ethernet and Fast Ethernet devices (workstations and other
equipment) to the same hub.
All ports on the Baseline Dual Speed Hub are half duplex, autosensing
10 Mbps and 100 Mbps. Each port senses the speed of the connected
equipment and operates at the appropriate speed.
The Baseline Dual Speed Hub comes with:
One power cord for use with the Baseline Dual Speed Hub
Four standard height, self-adhesive rubber pads
One rack mounting kit
A warranty information sheet with details of online registration
3 Baseline Dual Speed Hub 16-Port TP (3C16410) and
The Baseline Dual Speed Hub is suitable for office use where it can be free
standing or rack-mounted (in a wiring closet or equipment room). The
hub is powered from the AC mains supply
Network Connections
The Baseline Dual Speed Hub has 16 or 24 shielded RJ-45, 10/100
autosensing ports on the front panel. Each port can be connected to
either a 10BASE-T (Ethernet) or a 100BASE-TX (Fast Ethernet) device.
Internally, the hub has two repeater segments (10 Mbps and 100 Mbps)
which are linked by a switch, allowing connected 10 Mbps and 100 Mbps
devices to communicate.
You can connect a 10BASE-T or 100BASE-TX hub or switch to the
Baseline Dual Speed Hub.
1
Advertisement
Table of Contents
Related Manuals for 3Com SuperStack 3 3C16410
Summary of Contents for 3Com SuperStack 3 3C16410
-
Page 1: Network Connections
® SuperStack 3 Baseline Dual Speed Hub 16-Port TP (3C16410) and 24-Port TP (3C16411) User Guide DUA1641-0AAA01 NTRODUCTION ® The SuperStack 3 Baseline Dual Speed Hub is an easy-to-use, 10/100 autosensing Class II hub (repeater). It is ideal for users who want to connect both Ethernet and Fast Ethernet devices (workstations and other equipment) to the same hub. -
Page 2: Front Panel
OW TO SE THE Numbered elements in this diagram refer to numbered sections in the text. These numbers, in bold, are used as references. Front Panel 1 16 or 24 RJ-45 10/100 Ports You can use these ports to connect 10BASE-T or 100BASE-TX devices (workstations and other equipment) to the Baseline Dual Speed Hub. -
Page 3: Power Supply
Water or moisture cannot enter the case of the unit. Air flow around the unit and through the vents in the side of the case is not restricted (3Com recommends that you provide a minimum of 25 mm (1 in.) clearance). -
Page 4: Safety Information
AFETY NFORMATION Please read the following safety information carefully before installing the Baseline Dual Speed Hub. WARNING: Installation and removal of the unit must be carried out by qualified personnel only. The unit must be connected to an earthed (grounded) outlet to comply with international safety standards. -
Page 5: Related Standards
These may cause the Baseline Dual Speed Hub to sense the speed of the network incorrectly. We strongly recommend that you install the latest versions of the NIC drivers before connecting your network. 3Com NIC card drivers dated before 23/03/95 should be updated from the 3Com website. IEC 320 50/60 Hz 3C16410: 8.5 VA... - Page 6 1 800 876 3266 Please have your product model name, part number, hardware revision number and serial number along with all relevant details of the problem to hand before calling your Network Supplier or 3Com on the numbers below. Country Philippines P.R.
-
Page 7: Fcc Statement
3Com Technologies. 3Com Technologies reserves the right to revise this documentation and to make changes in content from time to time without obligation on the part of 3Com Technologies to provide notification of such revision or change. 3Com Technologies provides this documentation without warranty of any kind, either implied or expressed, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. -
Page 8: Regulated Materials Statement
Improving our environmental record on a continual basis The SuperStack 3 Baseline Dual Speed Hub is part of the extensive SuperStack 3 range of 3Com products. This range includes hubs, switches, power systems and other networking equipment, and is continually being developed. Contact your supplier for the latest product information and to order these products.
