Configuring Ctx Shapers - 3Com SuperStack II PathBuilder S330 Reference Manual

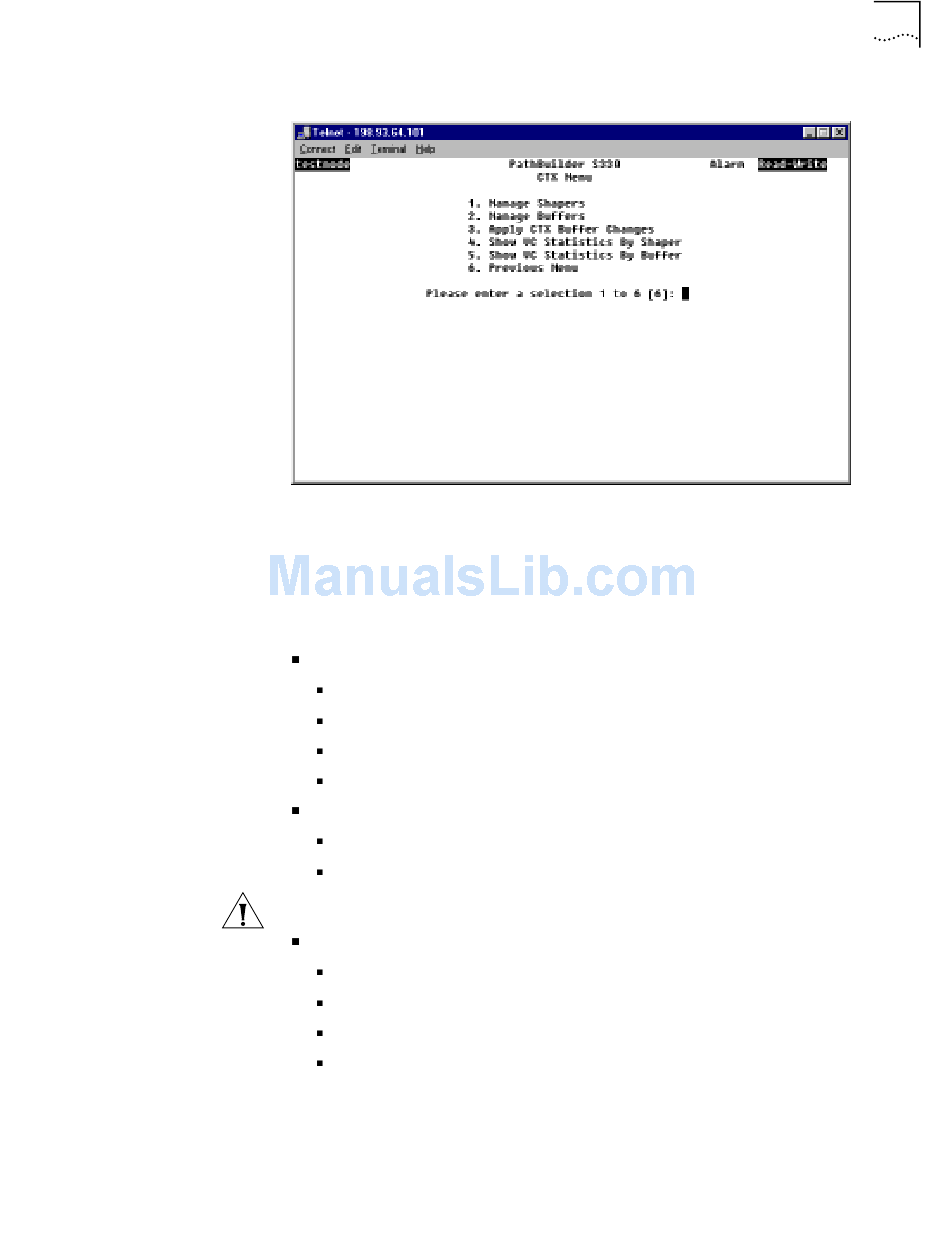

Figure 63 CTX Menu
From the CTX menu, you access the submenus and screens from which you
perform buffer and shaper configuration, as described in the following
subsections.
Configuring CTX The PathBuilder S330/S310 switch supports 10 peak rate shapers. The shapers are
Shapers separated into ten virtual queue-trunks:
CAUTION: The default configuration is optimized for performance.
You can assign shapers for these queue-trunks based on peak rate (or bulk
shaping) towards the WAN, as follows:
1 From the Configuration Management menu, select [1] Manage Card to open the
List Card menu.
2 Select [2] CTX to open the CTX menu, shown in Figure 63.
4 for the group 1 IMA WAN interface:
Trunk bulk
Medium
Low1
Low2
2 for the AAL5 SAR (Ethernet and V.35/RS-449 packet)
SAR output
SAR input
4 for the OC3/STM-1 interface:
OC3/STM-1 bulk (the sum of the other three queues)
OC3/STM-1 queue 1
OC3/STM-1 queue 2
OC3/STM-1 queue 3
Configuring the CTX 73
