To define an RS-366 (video) virtual circuit template:
1 When you are prompted to select the virtual circuit type, as shown earlier in
Figure 121, select [2] RS366 Template.

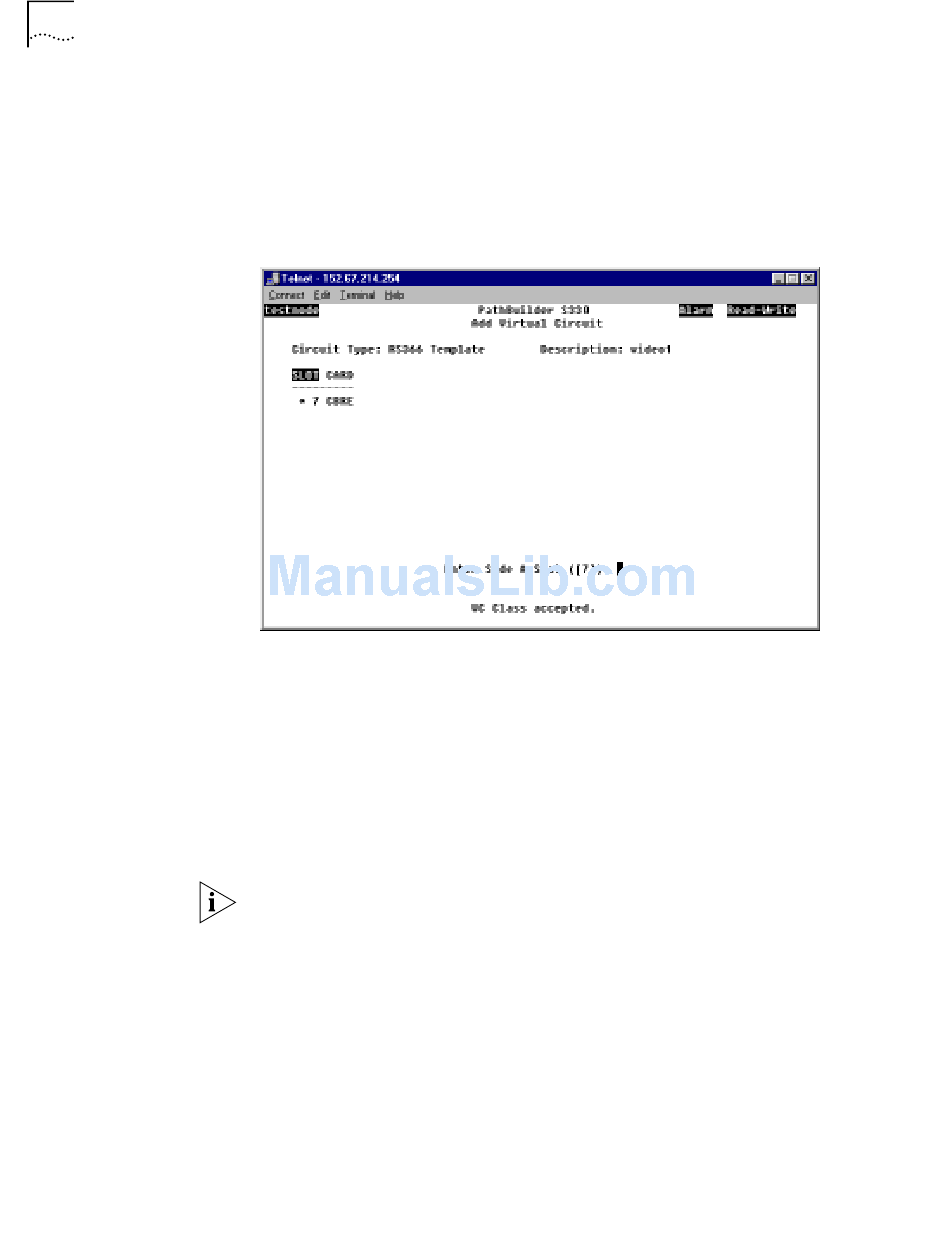

As shown in Figure 127, the screen lists the slot in which the CBR module is
installed, and you are prompted to enter that slot number.
Figure 127 Selecting the Slot for Side A of a Video Virtual Circuit Template
2 Enter the appropriate slot number.
The screen lists the Slot/Port/Card you have selected, and prompts you to set the
administrative status of the circuit.
3 Set the administrative status for the circuit. The Add Virtual Circuit screen opens.
This screen lists the parameters you will enter for side A of the circuit template and
prompts you to set the first parameter. See "CBR Module Virtual Circuit
Parameters", later in this chapter, for parameter descriptions.
4 Follow the prompts that appear at the bottom of the screen, pressing [Enter] after
each entry.
Your settings are added to list of parameters at the top of the screen as you enter
them. You must enter a setting for all the parameters for which you are prompted
in order to add a circuit template. Press [Delete] to back up to a previous selection.
When you have completed side A of the circuit template by entering a setting for
each parameter, the Add Virtual Circuit screen displays a list of PathBuilder
S330/S310 modules that you can use for side B of the circuit template.
Figure 128 shows the Add Virtual Circuit screen with side A completed for a video
virtual circuit template.
