Viewing and Configuring System Information
61

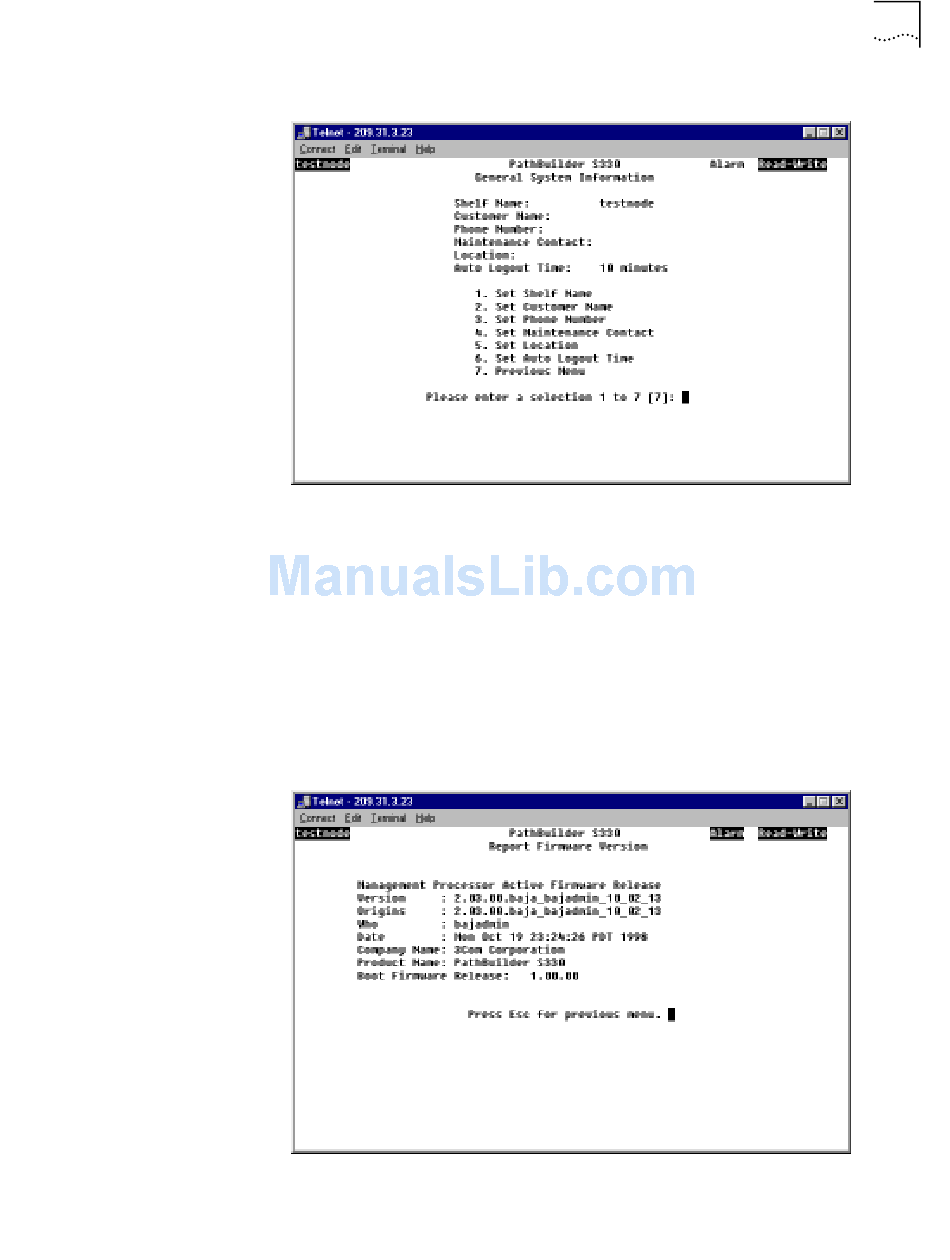

Figure 56 Specifying General System Information
Viewing RS-232 Port
You enter initial configuration information using the VT100 terminal connected to
Configuration
the RS-232 port on the PathBuilder S330/S310 switch. See "Logging On" in
Information
Chapter 3, for details. To view the terminal configuration:
From the System Administration menu, select [4] RS-232 Port Configuration.
Viewing the Firmware
To view the version number for the firmware that is currently running on the CPU:
Version
From the System Administration menu, select [5] Report Firmware Version to open
the Report Firmware Version screen, shown in Figure 57.
Figure 57 Report Firmware Version Screen
