Configuring Vcm Ds0 Channels - 3Com SuperStack II PathBuilder S330 Reference Manual

124 C 4: C
HAPTER ONFIGURING
Configuring VCM DS0
Channels
P B S330/S310 M
ATH UILDER ODULES
To open the VCM Configuration menu:
1 From the main menu, select [2] Configuration Management to open the
Configuration Management menu, shown earlier in Figure 59.
2 From the Configuration Management menu, select [1] Manage Card to open the
List Card menu, shown earlier in Figure 60.
3 From the List Card menu, enter the number corresponding to the slot in which the
VCM you want to configure is installed (
menu. Figure 115 shows the VCM T1-DSX Configuration menu. The VCM E1
Configuration menu is the same.

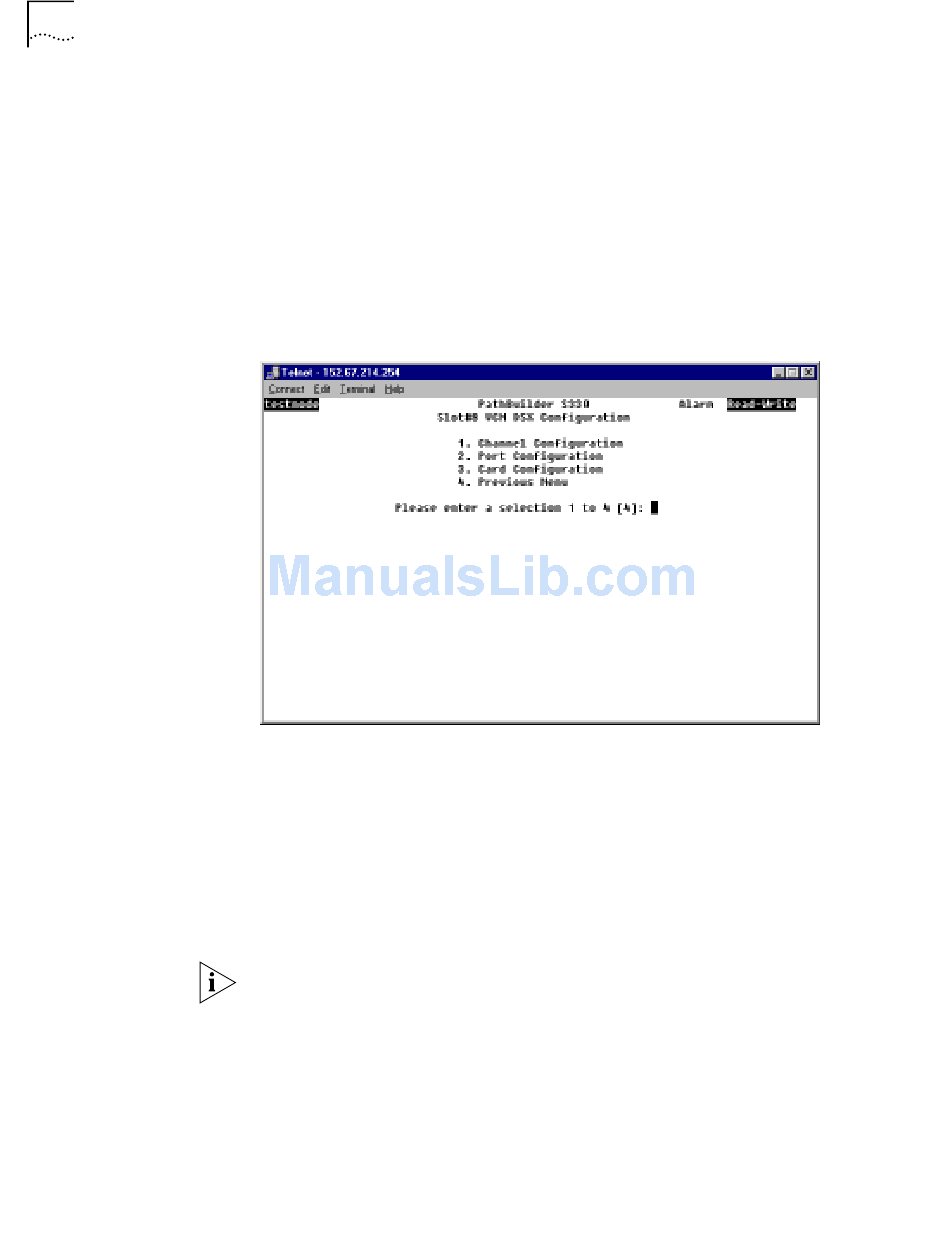

Figure 115 VCM Configuration Menu
The following subsections describe the VCM configuration tasks in greater detail.
For details about configuring virtual circuits for the VCM, see "Configuring Virtual
Circuits" later in this chapter.
To configure VCM DS0 channels:
1 From the VCM Configuration menu, shown earlier in Figure 115, select
[1] Channel Configuration. You are prompted to enter the channel number of the
channel you want to configure.
You can select any channel (1-24 for T1 or 1-30 for E1) for a total of 8 VCM DS0
channels.
2 Enter the number of the channel you want to configure.
After you enter the channel number, the VCM Channel Configuration menu
opens. Figure 116 shows a representative VCM Channel Configuration menu.
, P , A
ORTS AND PPLICATIONS
or ) to open the VCM Configuration
